Translinear SQRT PNP PUBLIC

Created by
Created August 07, 2013
Last modified August 07, 2013
Tags bjt   signal   translinear

Summary

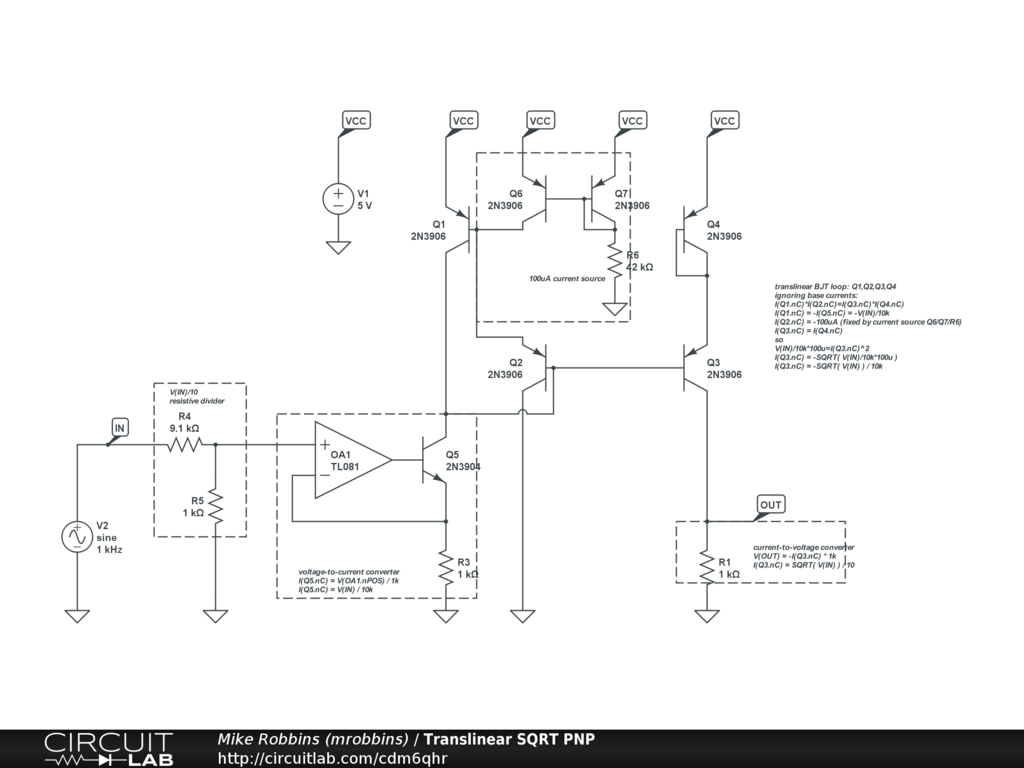

Translinear analog square root circuit. V(OUT) = SQRT( V(IN) ) / 10

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Concept: performs analog square root using the logarithmic voltage-current relationship of BJTs.

In response to "Extracting the Square Root of a Voltage" on Electronics Stack Exchange: http://electronics.stackexchange.com/questions/78294/extracting-the-square-root-of-a-voltage

Translinear square root core from Prof. Joel Dawson, MIT, notes http://www-mtl.mit.edu/~jldawson/documents/jldrec18.pdf (full course notes http://www-mtl.mit.edu/~jldawson/6301_notes.html)

http://en.wikipedia.org/wiki/Translinear_circuit
