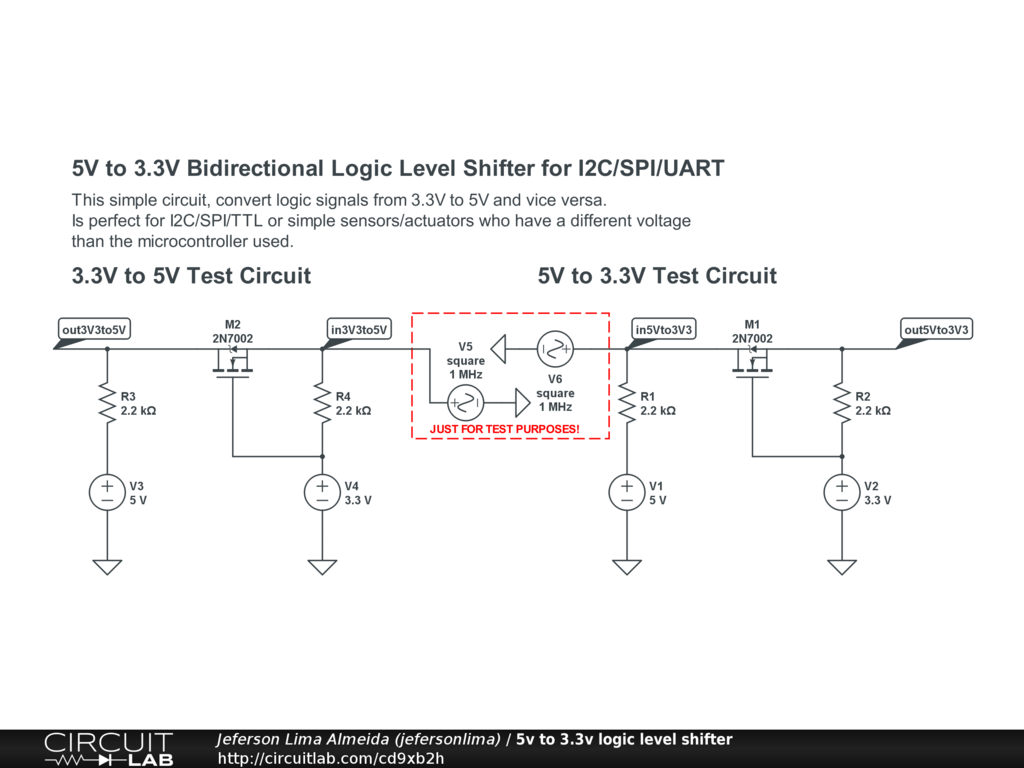

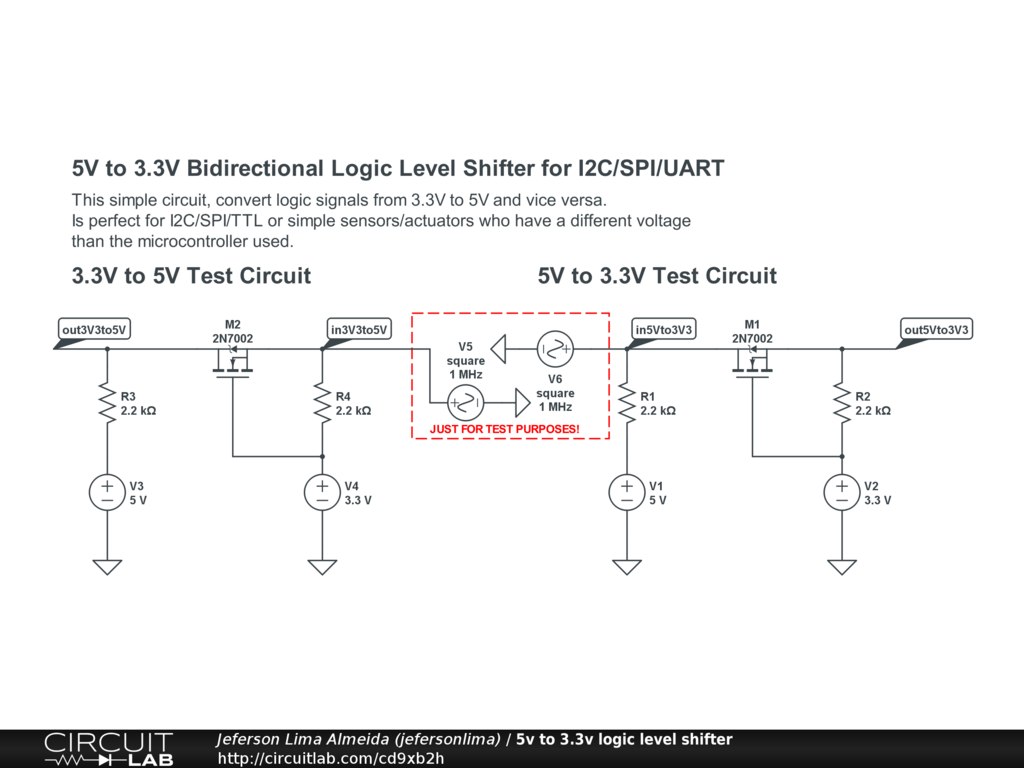

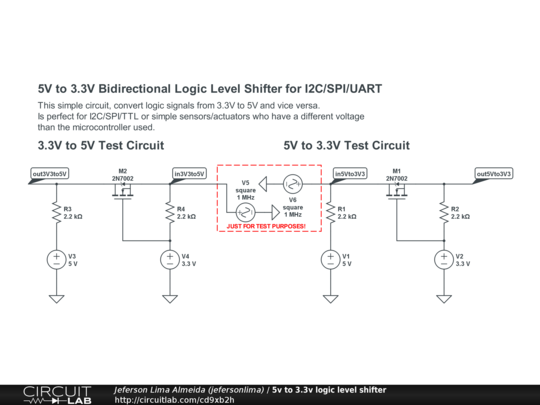

5v to 3.3v logic level shifter

Created by	Jeferson Lima Almeida (jefersonlima)
Created	September 04, 2015
Last modified	October 03, 2016
Tags	No tags.

Summary

Simple bidirectional logic level shifter.
Works great with I2C/SPI/TTL, and 5V to 3.3V or vice-versa, but might work with other voltages and protocols.

Creative Commons (CC BY-NC-SA) 2015 Jeferson Lima
