DC Sweep find max power in load 01

Created by	signality
Created	March 06, 2013
Last modified	March 06, 2013
Tags	dc-transformer ideal-transformer maximum-power maximum-power-transfer

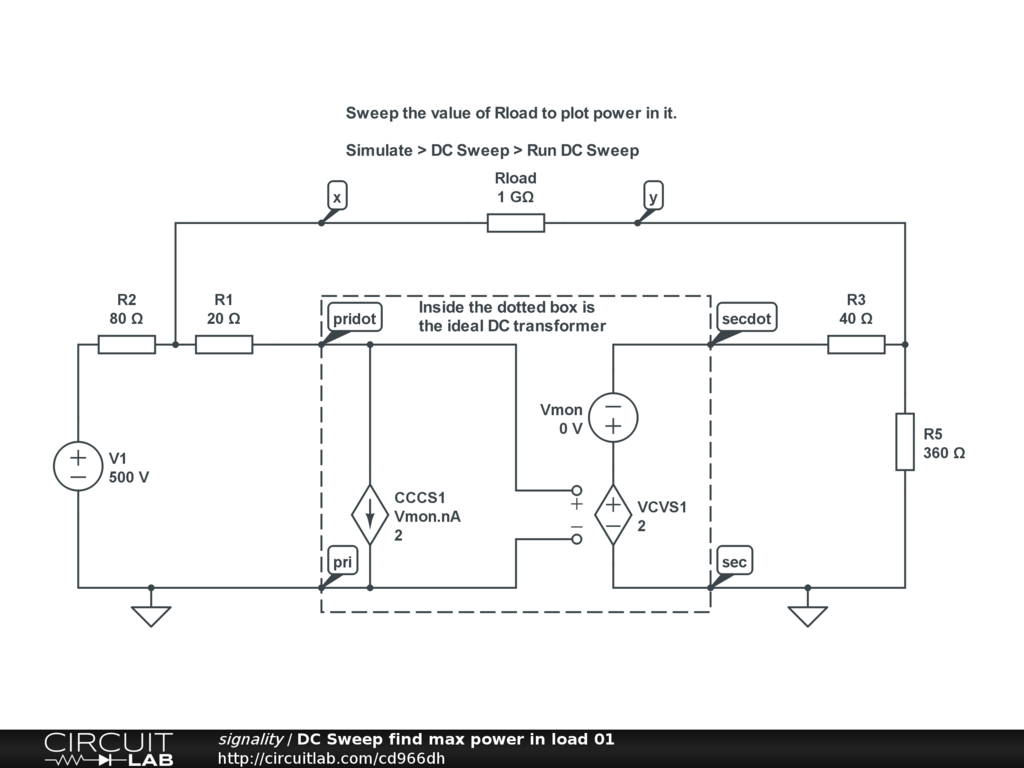

Sweep the value of Rload to plot power in it.

Simulate > DC Sweep > Run DC Sweep
