Dimmable Current-controlled LED driver

Created by	QuanT Suff (qs)
Created	April 29, 2013
Last modified	April 29, 2013
Tags	current-controlled dimmable driver joule-thief led-array

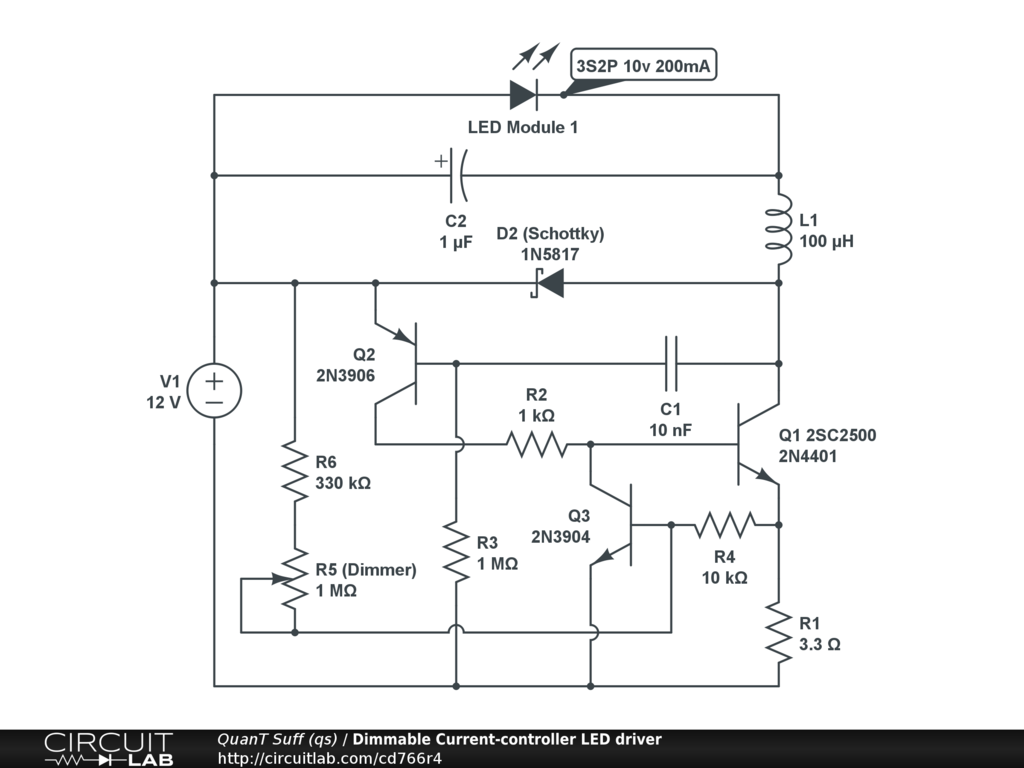

A simple dimmable driver for a 10v-200mA LED array. Part is DX SKU: 195326 ($2.60)
