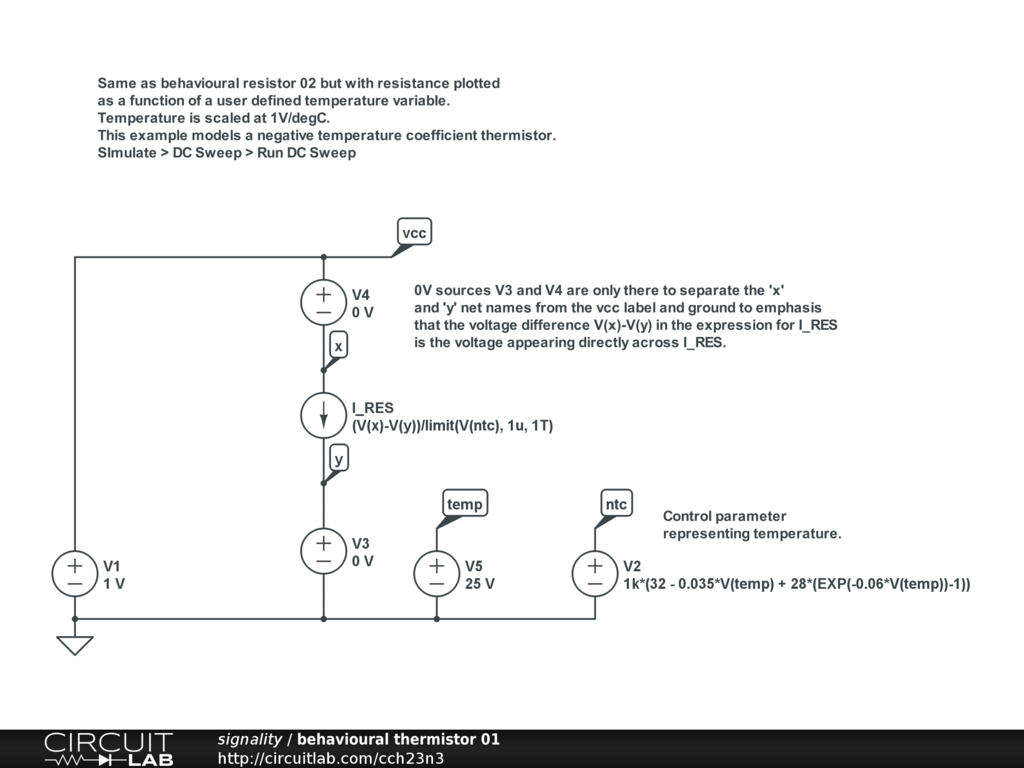

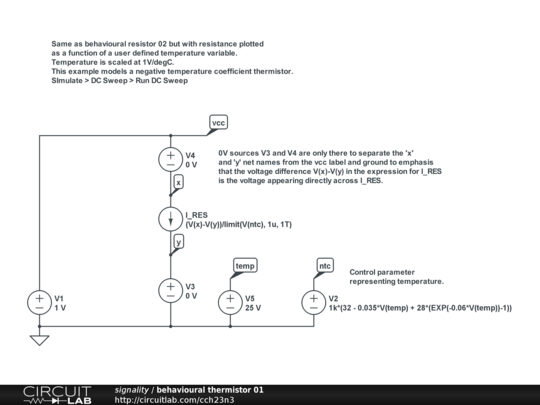

behavioural thermistor 01

Same as behavioural resistor 02 but with resistance plotted
as a function of a user defined temperature variable.

Temperature is scaled at 1V/degC.

This example models a negative temperature coefficient thermistor.

SImulate > DC Sweep > Run DC Sweep
