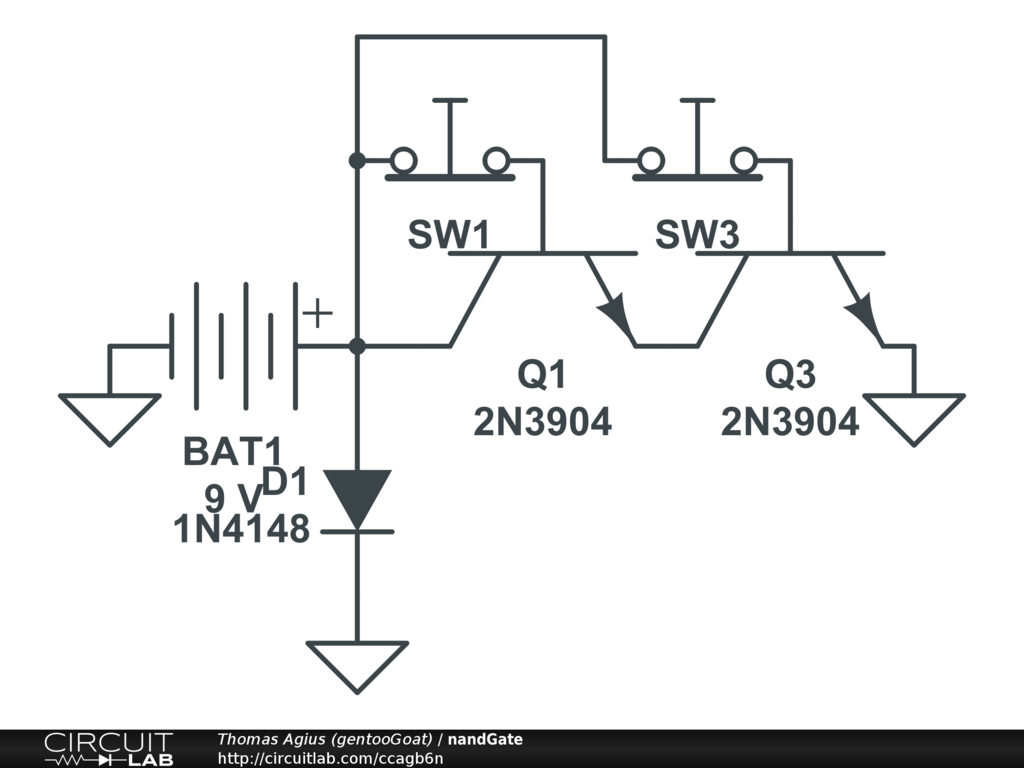

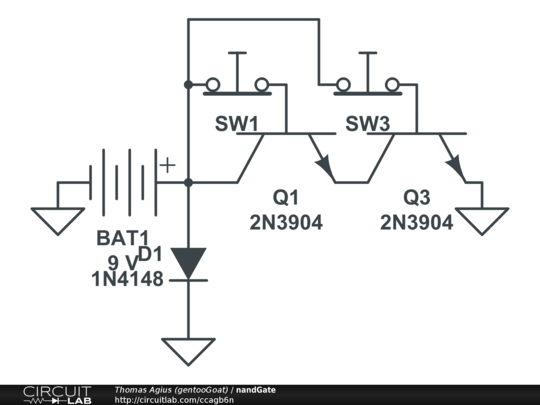

A circuit designed to give a bit output of 1, as long as both switches aren't 'on' at the same time.
00=1
10=1
01=1
11=0
In my quest to test my understanding of electronic logic, I am designing all the logic gates. Here is my second; the nand-gate
