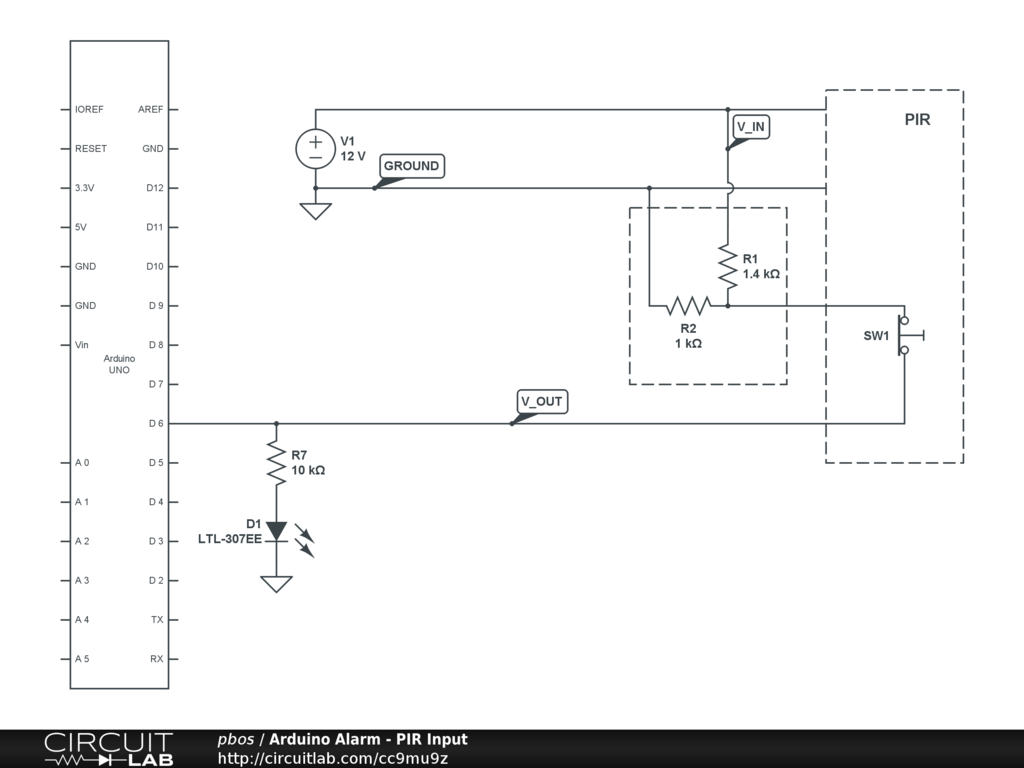

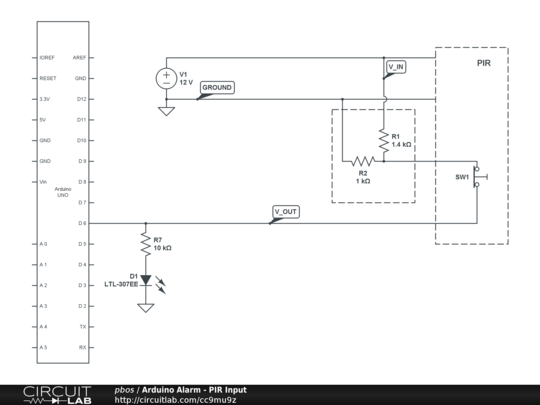

Modifying a regular 12V PIR to work with the Digital 5V input of an Arduino using a simple voltage devider. LED is optional. Without the LED resistor V_OUT should be exactly 5V
