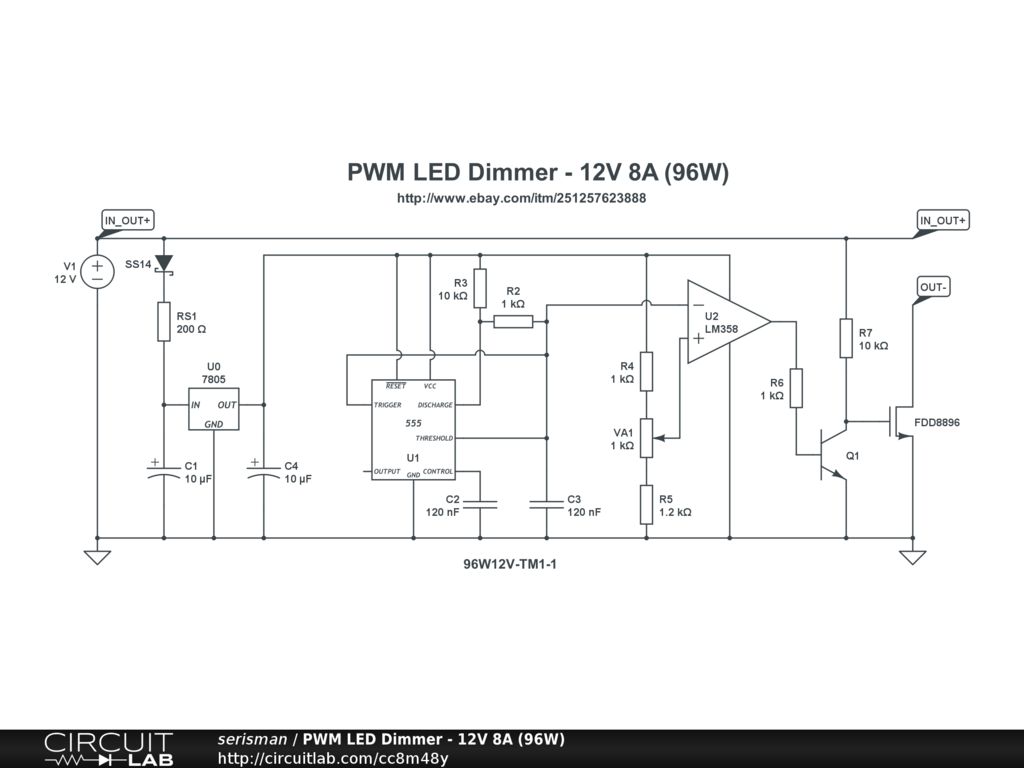

Reverse Engineered PWM LED Dimmer from eBay12V 8A (96W)96W12V-TM1-1http://www.ebay.com/itm/251257623888
