2N3906 Switching Performance PUBLIC

Created by
Created July 02, 2012
Last modified July 02, 2012
Tags bjt

Summary

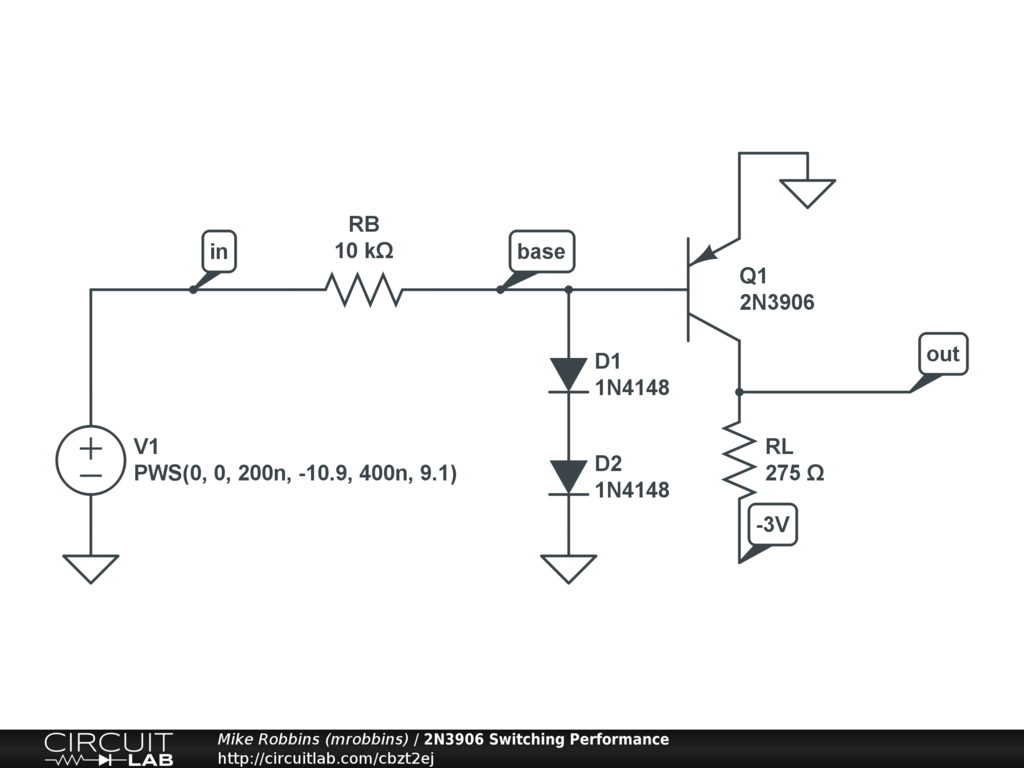

Switching (saturation turn-on/turn-off) times for 2N3906 PNP BJT.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

In response to http://electronics.stackexchange.com/questions/34916/pnp-transistor-switching-time-puzzler.

2N3906 datasheet has Figs 1 and 2 showing how they measured the switching characteristics. This attempts to approximately replicate both in one shot.
