PowerFactorCorrection

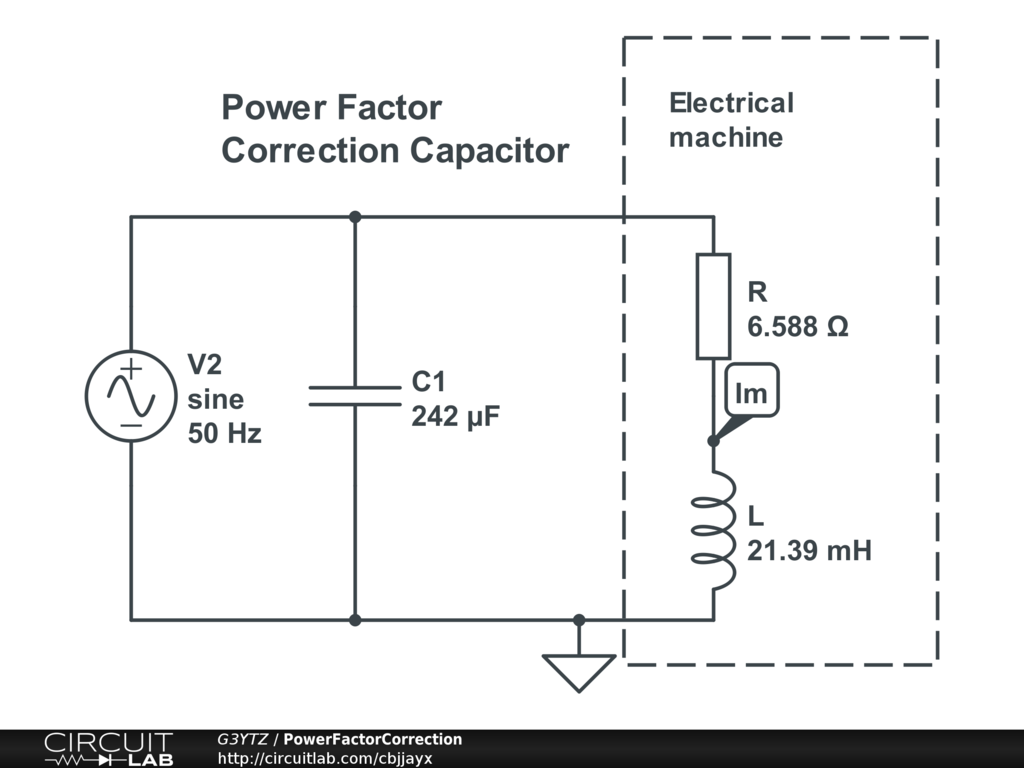

Power factor correction of an electrical machine.
Without capacitor PF = 0.7.
With capacitor C=127 uF PF = 0.9
With capacitor C=242 uF PF = 1
