Dual LED Flasher - Forrest Mims Design

Created by	kryton9
Created	March 12, 2012
Last modified	March 13, 2012
Tags	flash led

Summary

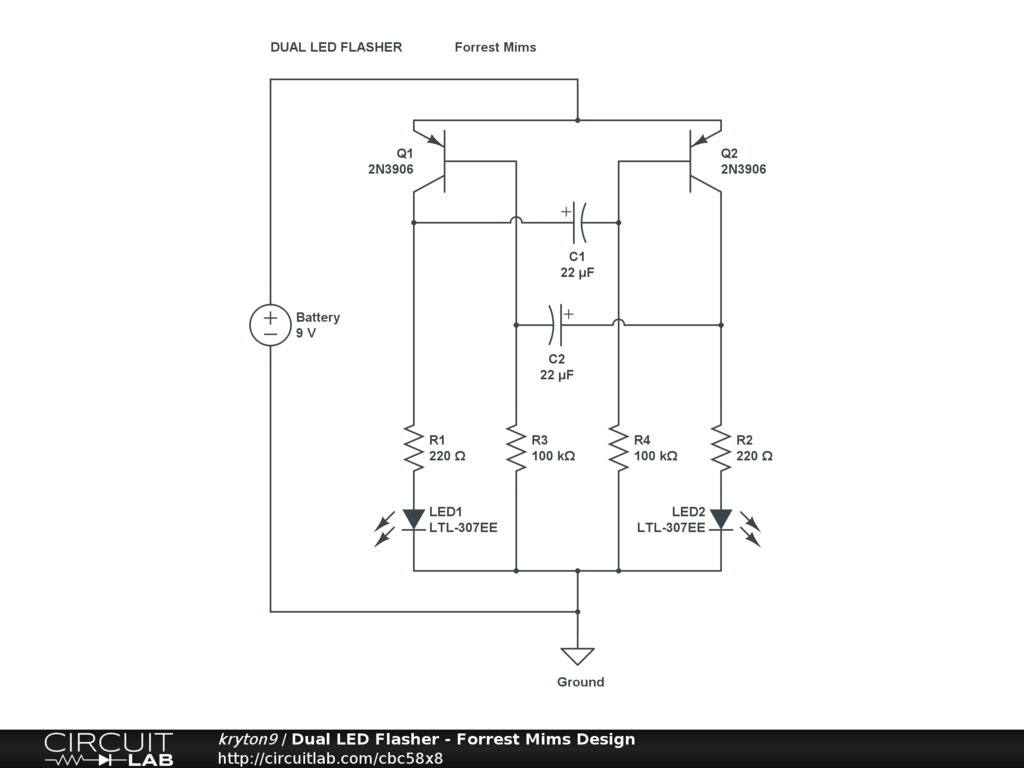

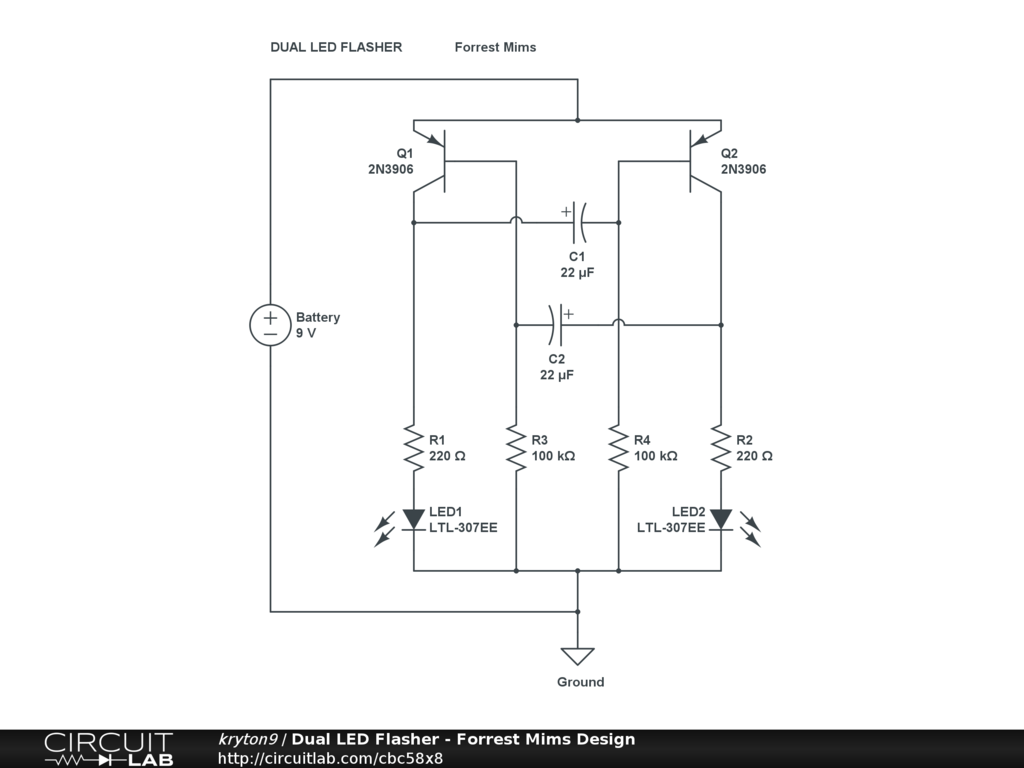

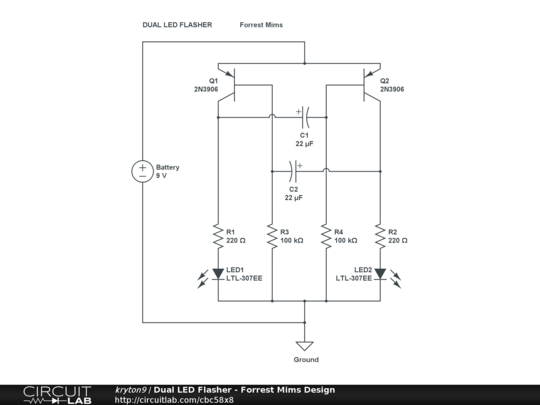

This is from Forrest Mims book. Flashes Dual LEDS.

I wanted to use a proven known schematic to learn Circuit Lab.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

This is from Forrest Mims book. Flashes Dual LEDS.

I wanted to use a proven known schematic to learn Circuit Lab.

Something I found very useful. Select your item and in the Edit menu, use flip vertical or flip horizontal. These are very useful and I hope soon get shortcut keys.
