12v light timer

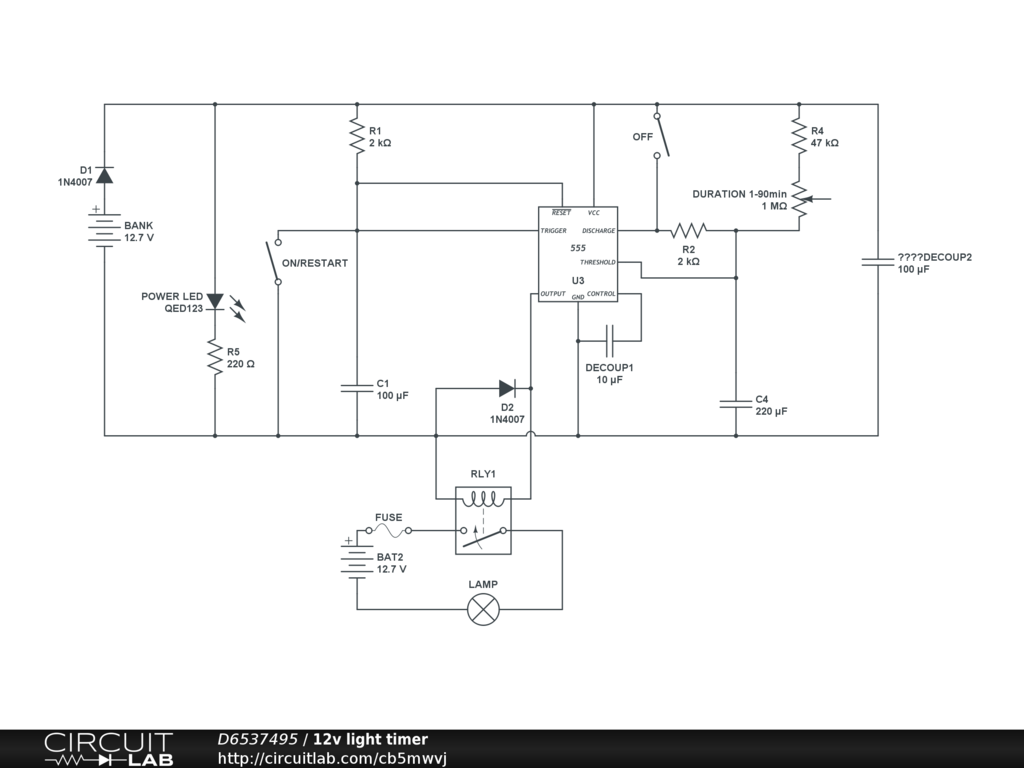

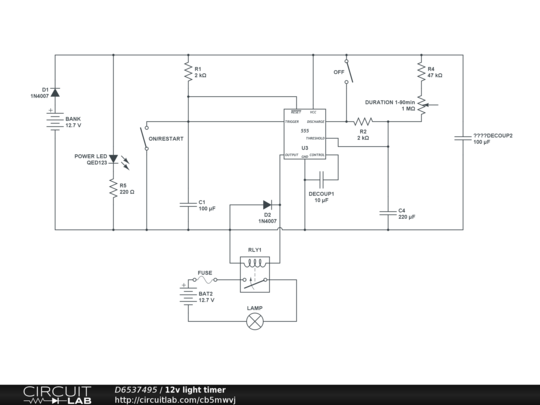

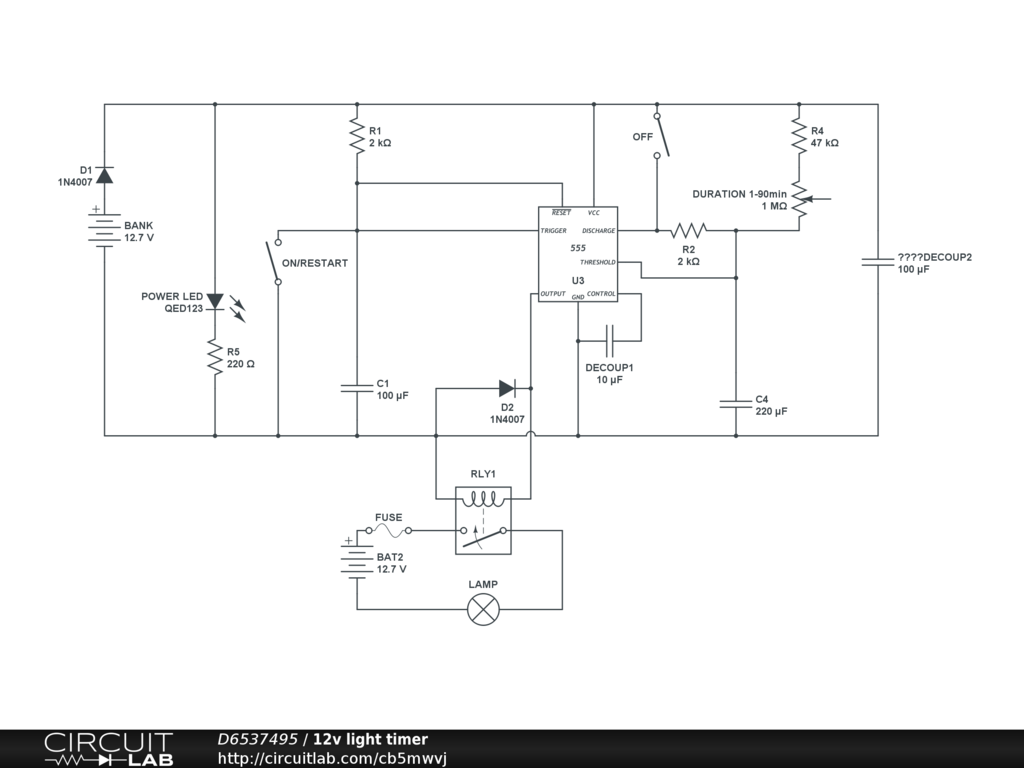

Light timer with on/off and extend cycle
main power decoupler is shown but currently does not permit normal operation.
