Zoola's Arduino

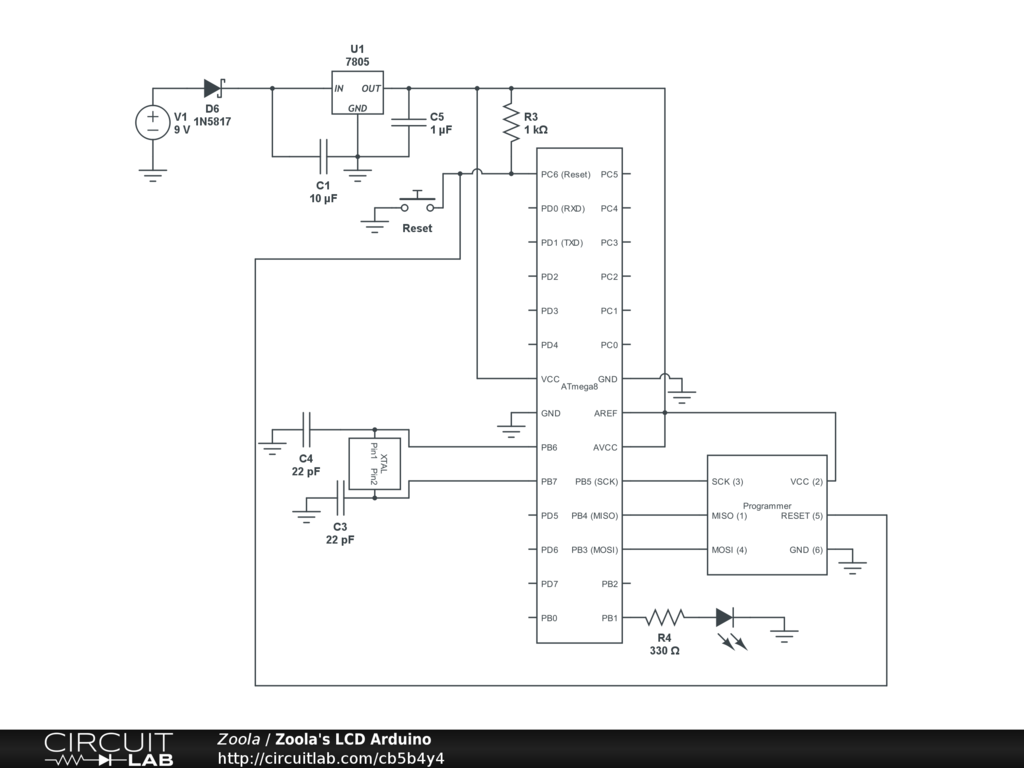

A relatively simple circuit replicating an Arduino that comes with an LED. Cheaper version of the original Arduino.
