Ramped and glitched signals and supplies 01

Created by	signality
Created	September 30, 2012
Last modified	November 01, 2012
Tags	glitch initial-conditions pwl pws ramped-supply startup

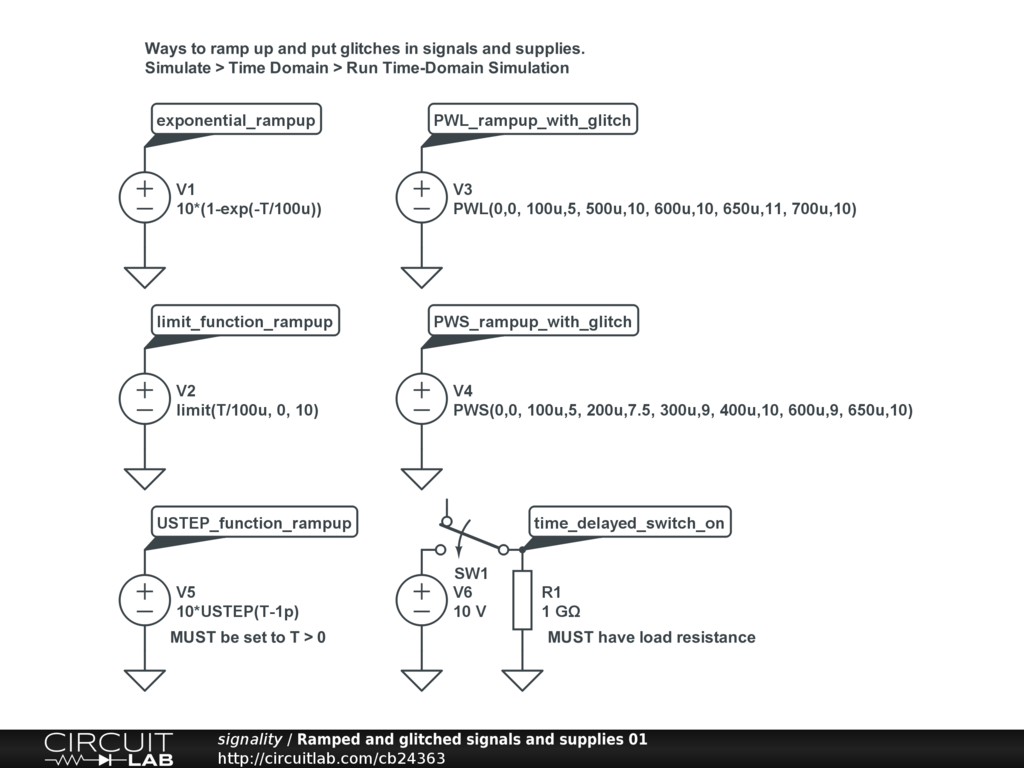

Ways to ramp up and put glitches in signals and supplies.
