Debounced Input for Switch or Open-Collector

Created by	thefekete
Created	March 26, 2012
Last modified	March 26, 2012
Tags	analog debounce digital open-collector schmitt switch

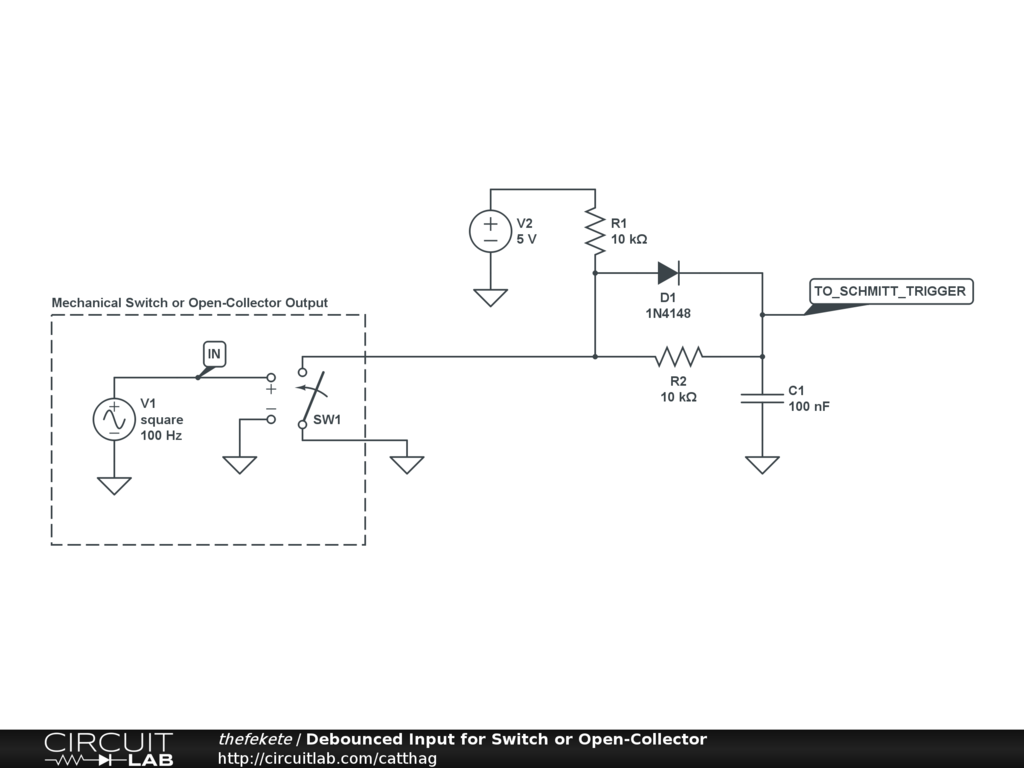

A Debounce circuit for use with a schmitt trigger and switches or open-collector/opto-couplers. Has 1ms debounce time as shown.
