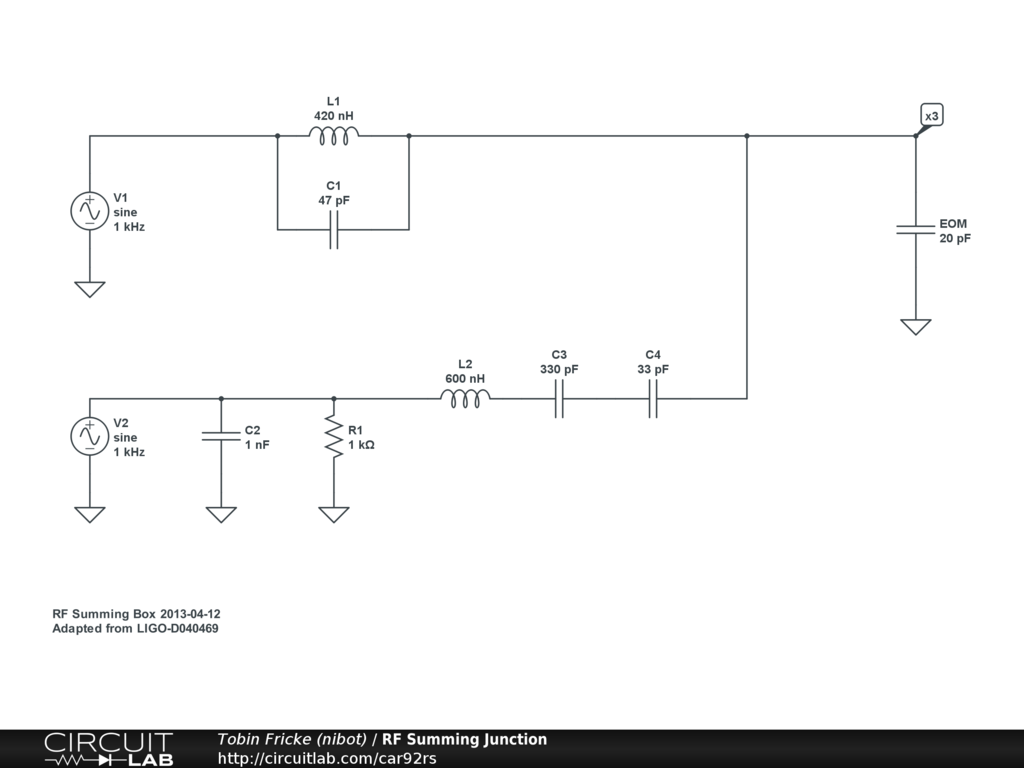

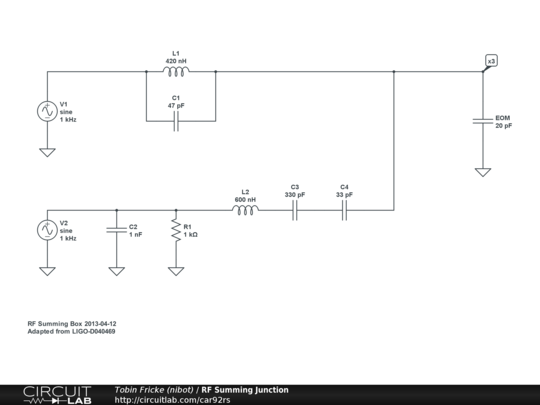

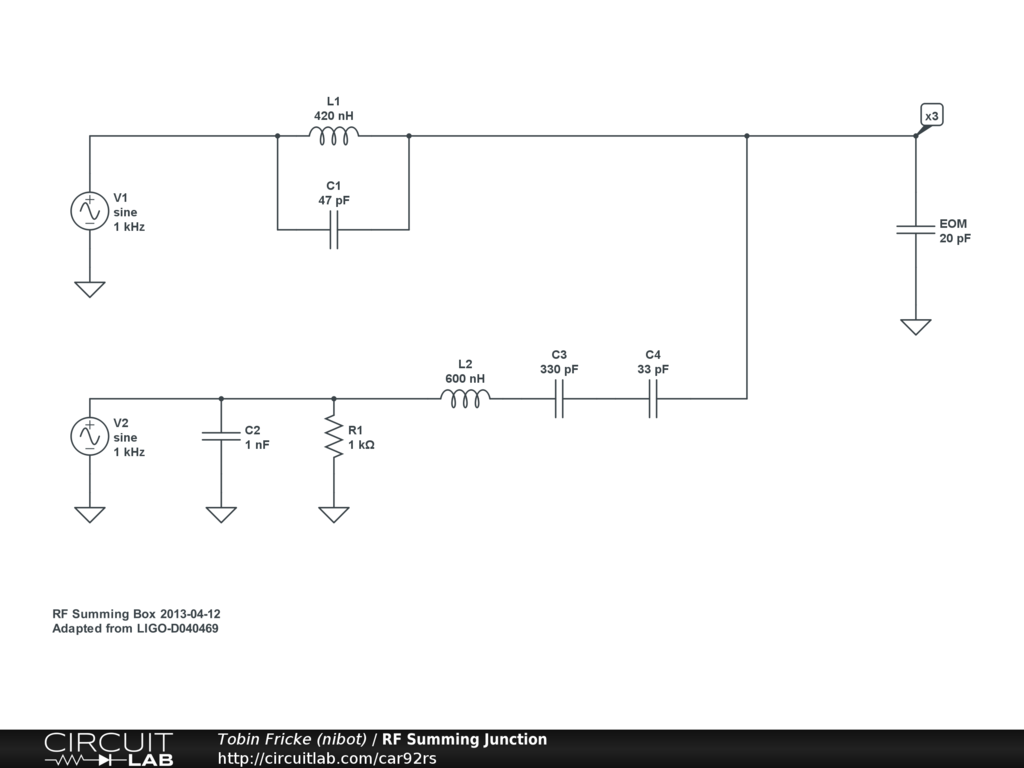

This circuit provides an RF summing junction to allow both a 35 Hz oscillator and a 0-10 MHz control signal to be summed into an electro-optic modulator (Newport model 4004).
