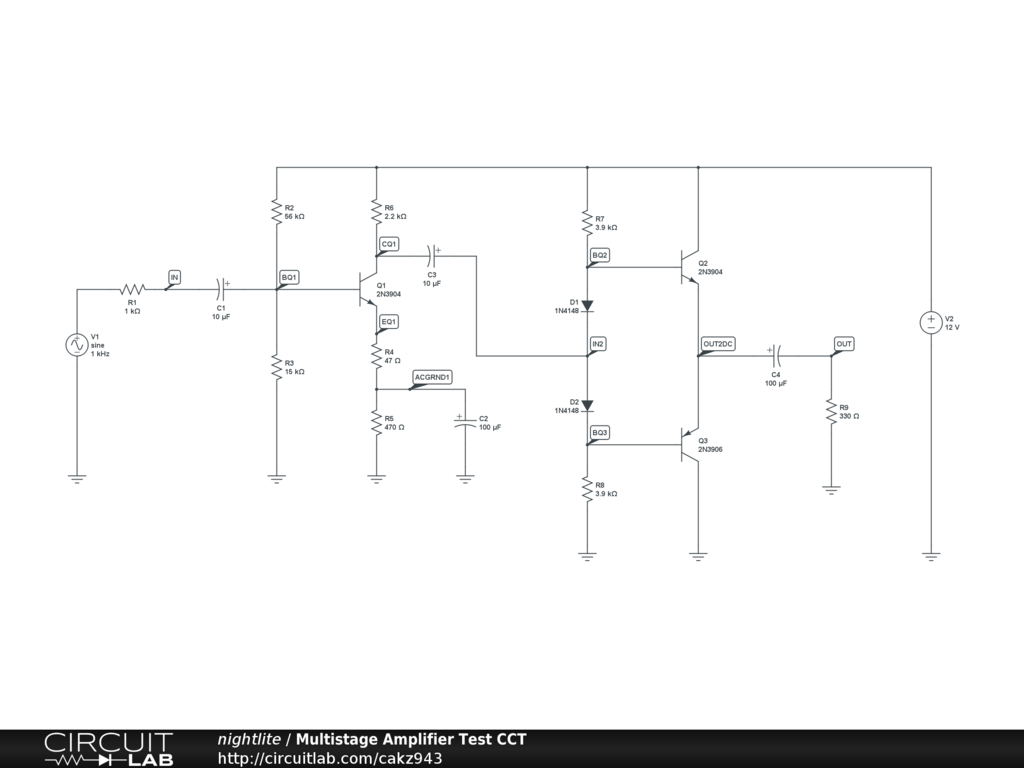

Multistage Amplifier Test CCT

Created by	nightlite
Created	January 19, 2013
Last modified	January 21, 2013
Tags	amplifier multistage nightlite

Not provided.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Not provided.

Rick!!! The V1 AC input is incorrect, the amplitude would need to be 50mV in order to actually get 100mVpp. also here's a question, are we supposed to try and achieve 100mVpp before or after RS? If it is after RS then the V1 actually needs to be at 62mVp to get 100mVpp at the base of Q1	by Stevekcarreras January 21, 2013
To my understanding, the V1 input is correct. It's given as 100mvpp, put into before the R1 resistor. If you check the voltage output after R1 it will be 80mvpp. It does not need to be 100mvpp at the base of Q1.	by nightlite January 21, 2013
The input is now correct, needed to be 50mvp rather than 100mvp. thought input value was p-p when i first built this cct. thanks steve!	by nightlite January 21, 2013
