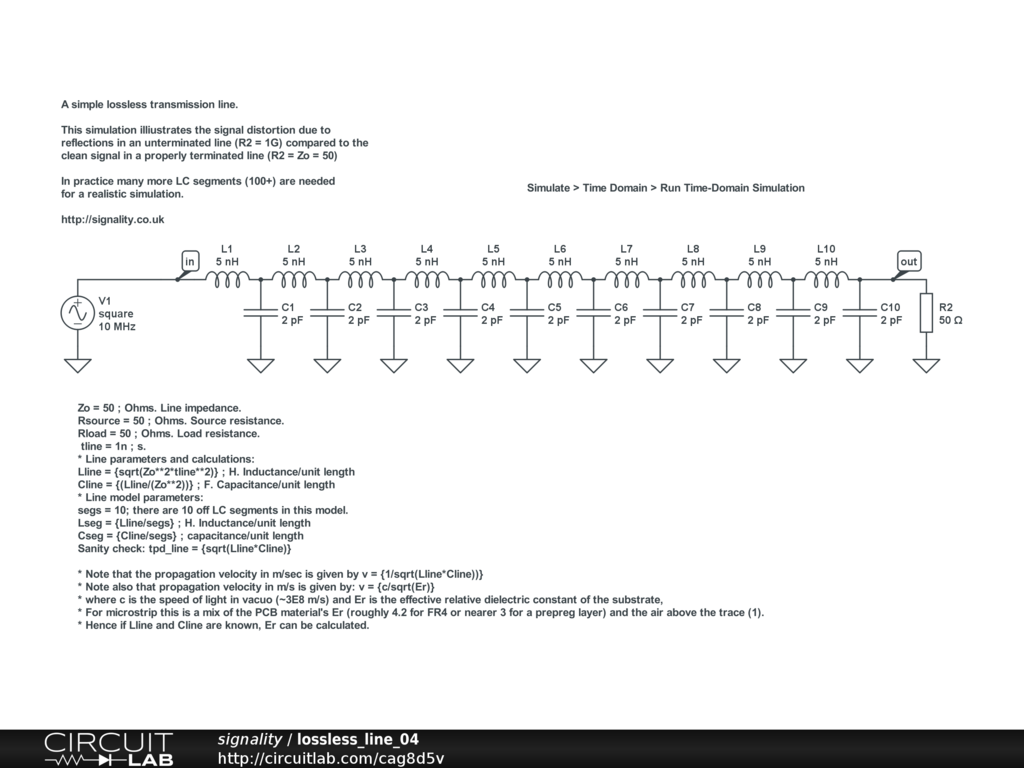

A simple lossless transmission line.
This simulation illiustrates the signal distortion due to
reflections in an unterminated line (R2 = 1G) compared to the
clean signal in a properly terminated line (R2 = Zo = 50)
Simulate > Time Domain > Run Time-Domain Simulation
A simple lossless transmission line.
This simulation illiustrates the signal distortion due to reflections in an unterminated line (R2 = 1G) compared to the clean signal in a properly terminated line (R2 = Zo = 50)
In practice many more LC segments (100+) are needed for a realistic simulation.
