Tremolo 03

Created by	signality
Created	September 02, 2013
Last modified	September 02, 2013
Tags	jfet-as-resistor tremolo vca vcr

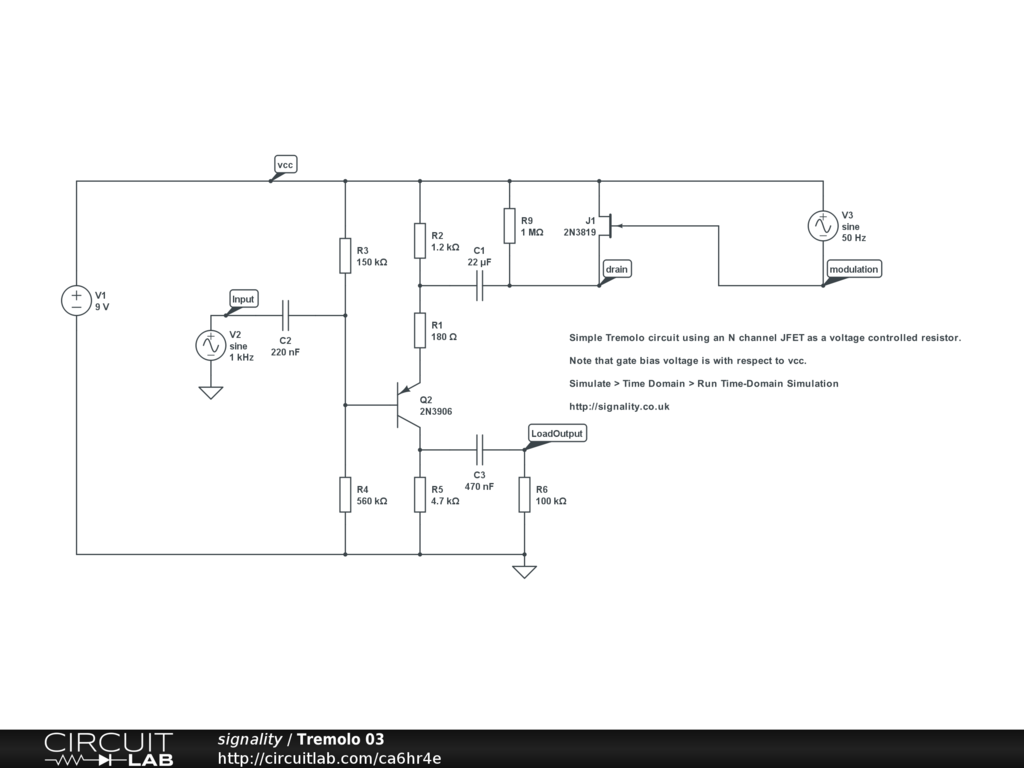

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.

Based on:

Note that gate bias voltage is with respect to vcc.

See:

for reduced signal distrortion version.

Simulate > Time Domain > Run Time-Domain Simulation
