Good netname and a free voltage source

Created by	signality
Created	May 03, 2012
Last modified	January 01, 2013
Tags	label label-voltage-source net-name

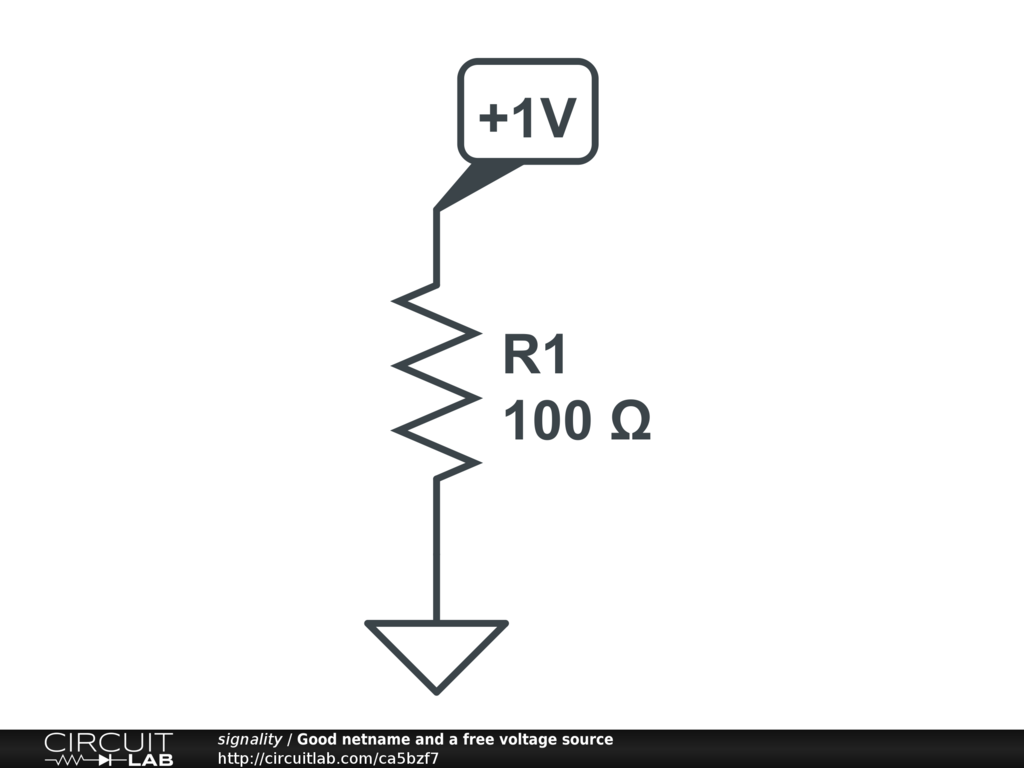

The +1V or +1 netname invokes an implicit 1V source.

However see also: [circuitlab]8mx32g[/circuitlab]
