phone headset line source inject

Created by	honsey
Created	August 27, 2012
Last modified	August 28, 2012
Tags	electret line-level microphone op-amp

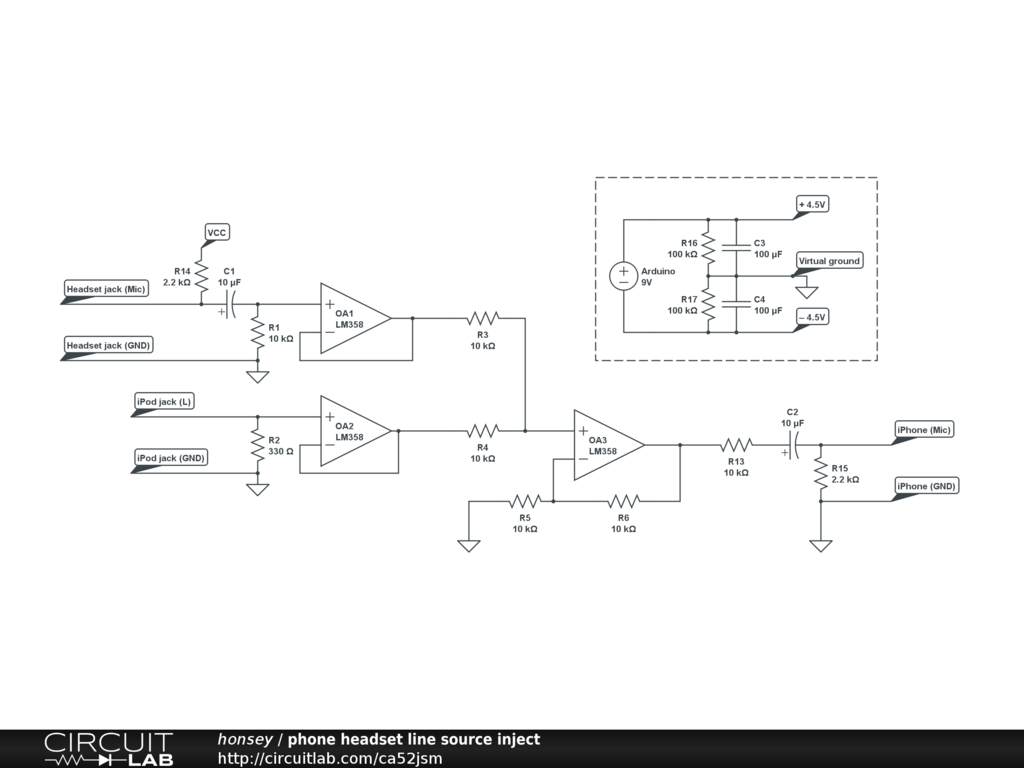

inject sound from (i.e.) ipod into a phonecall via hacked headset

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

working prototype.

heavy noise on mic and ipod, but: working!

lm358 might not be "the" audio op amp but thats too much noise
