Frecuencímetro

Created by	juanbn1503
Created	April 18, 2015
Last modified	April 18, 2015
Tags	active-filter band-pass op-amp

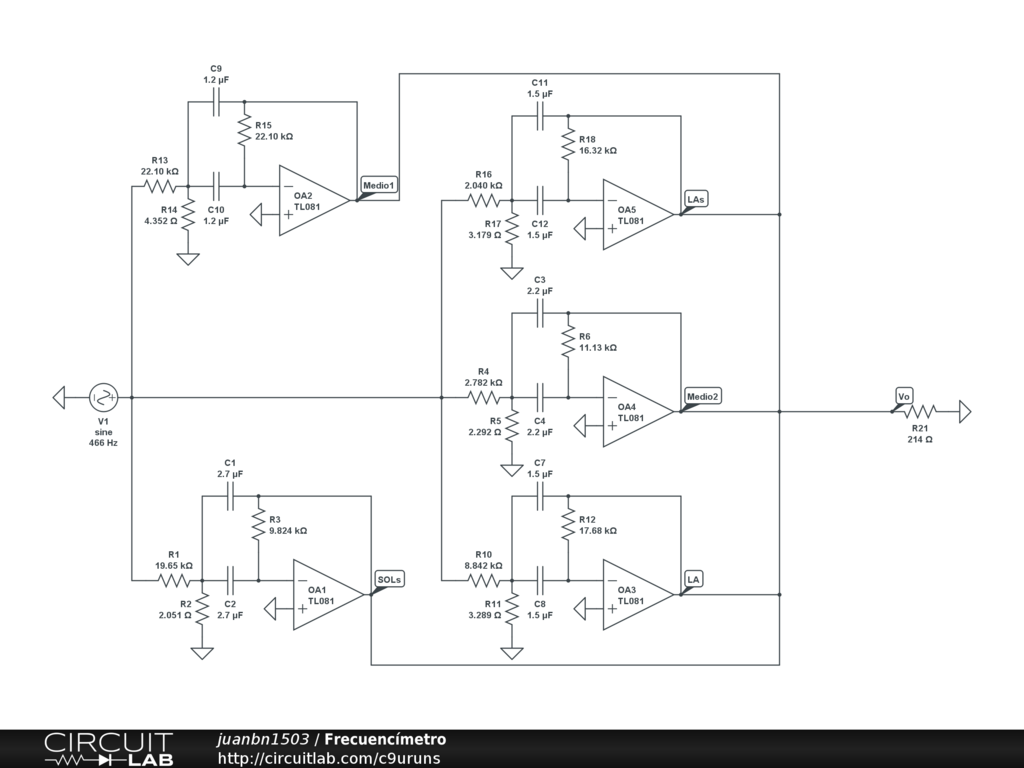

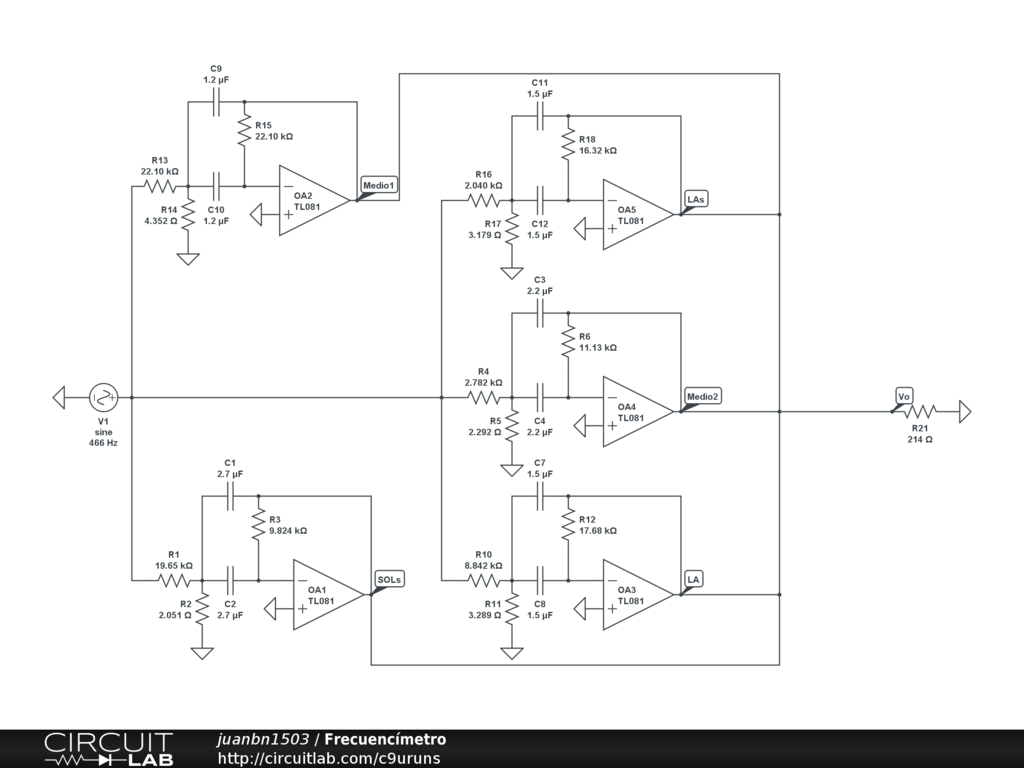

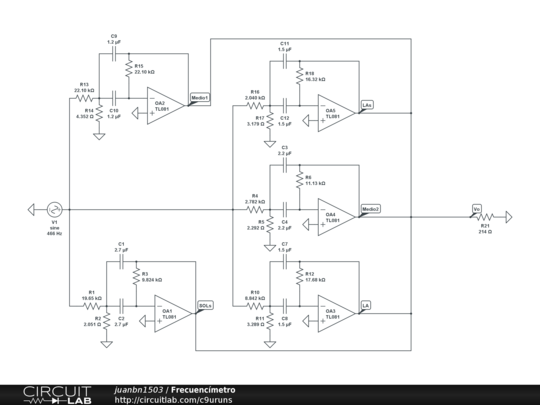

Frecuencímetro diseñado para funcionar en un espectro de 400 a 480 Hz
