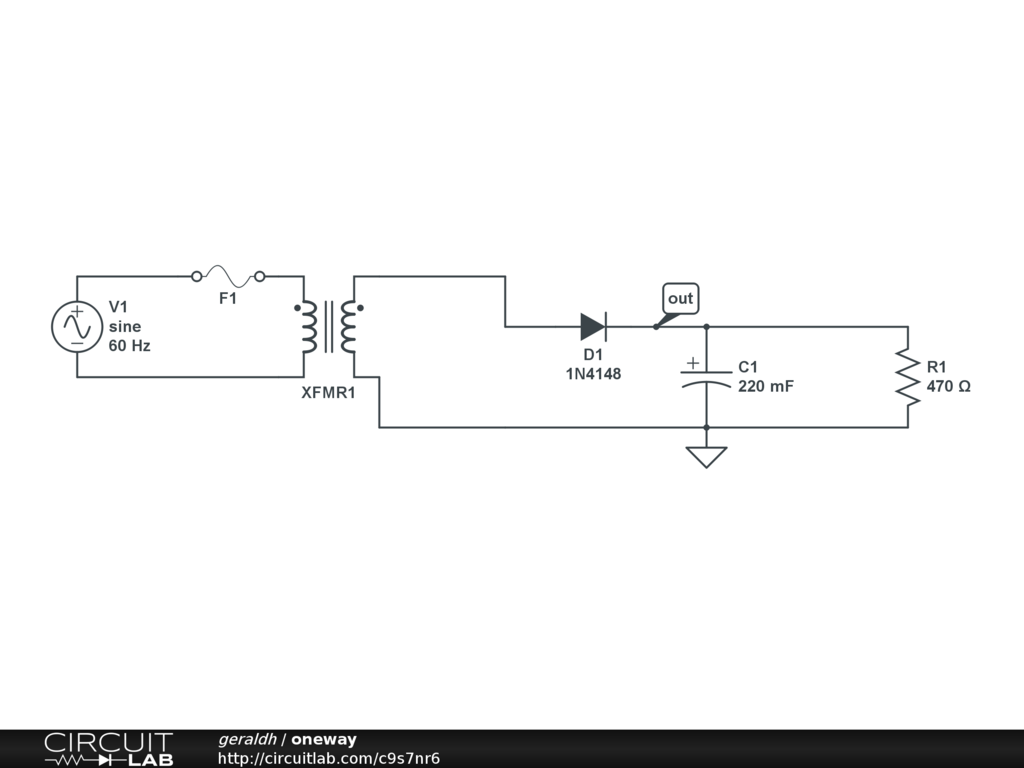

Why does V_out get negative?
arduinohacker solved it for me: There was a wire right behind the diode, bypassing it, but obscured by the diode and therefore invisible in the diagram.
Not provided.
