NAND - CircuitLab

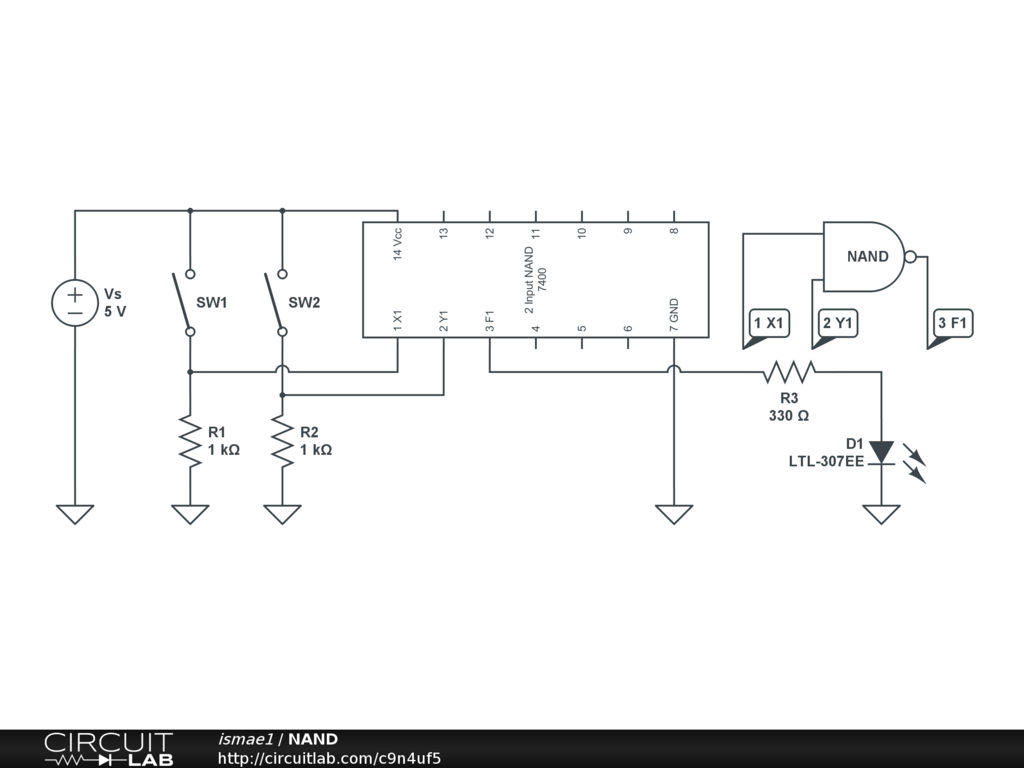

This is the basic schematic of the way to connect a logic gate and test 0's & 1's, and see the result on the LED...
