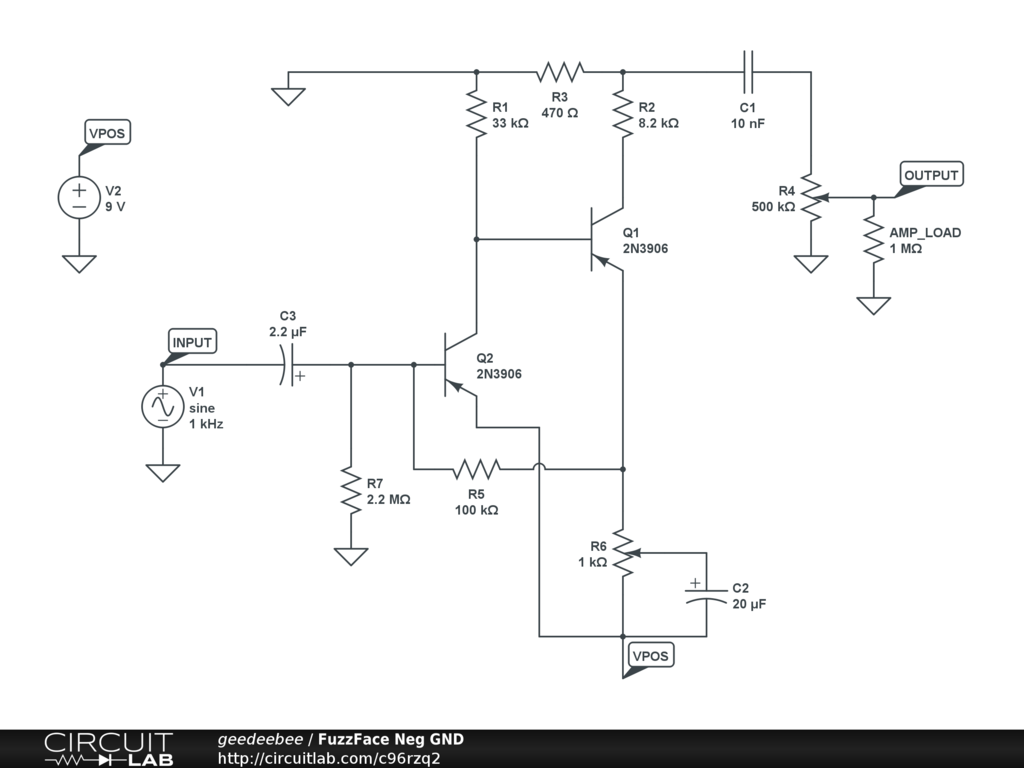

Negative Ground version of the Fuzz Face. IRL the circuit needs to be built with Ge PNP transistors (like AC128...)
