Simplified transmitter PUBLIC

Created by
Created February 17, 2014
Last modified February 17, 2014
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

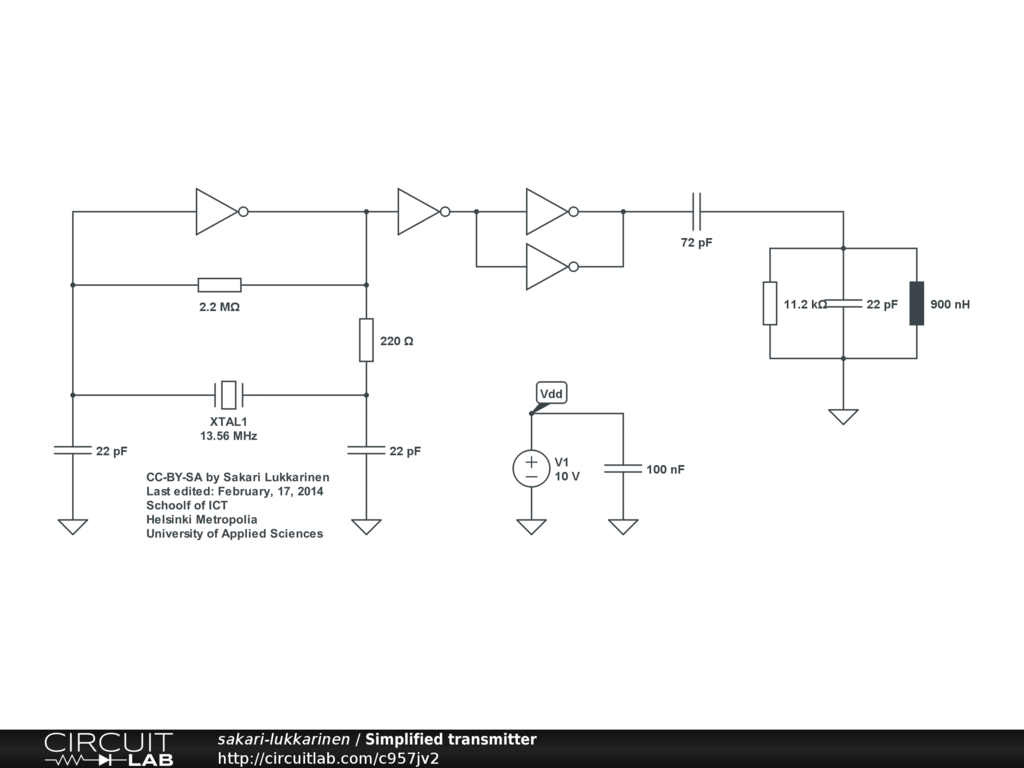

Simplified version of 13.56 MHz wireless power transmitter. The voltage over the coil might rise up high at resonance, so it is wise to limit the Vdd to 10 V.

Physics Laboratory Course, Spring 2014. School of ICT Helsinki Metropolia University of Applied Sciences
