Sweeping a switch parameter 02

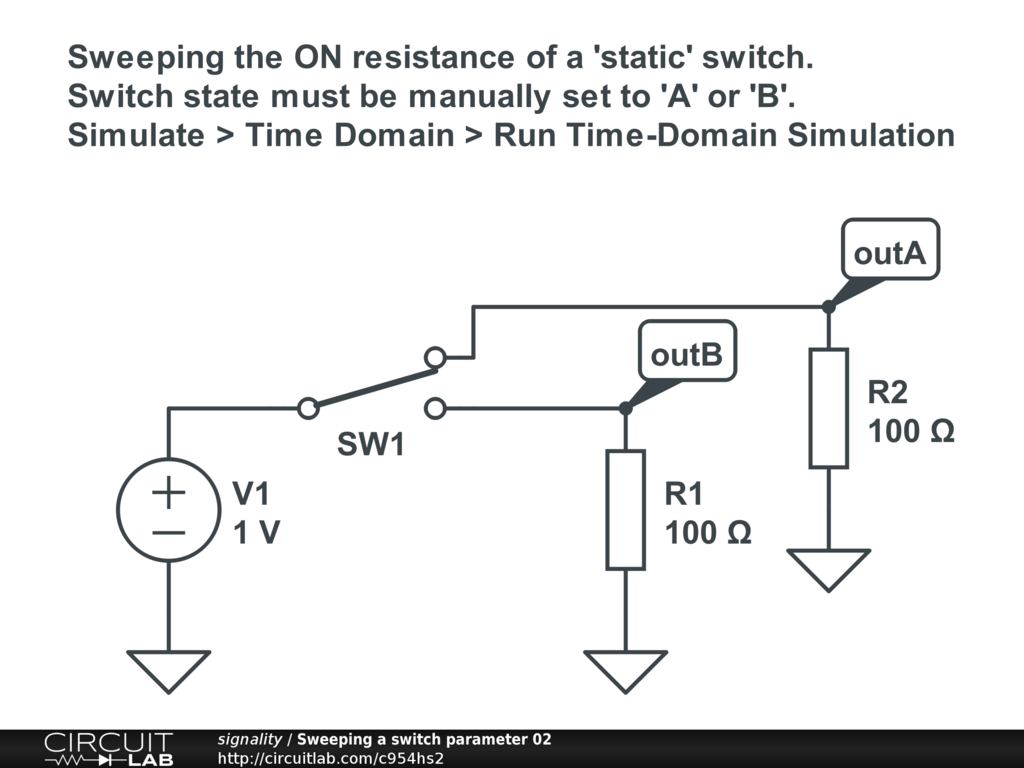

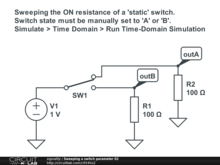

Sweeping the ON resistance of a 'static' switch.
Switch state must be manually set to 'A' or 'B'.

Simulate > Time Domain > Run Time-Domain Simulation
