Guitar Simulation 1 PUBLIC

Created by
Created September 09, 2013
Last modified September 11, 2013
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.

Comments

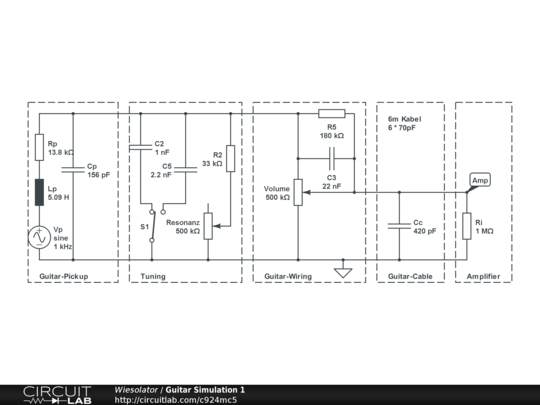

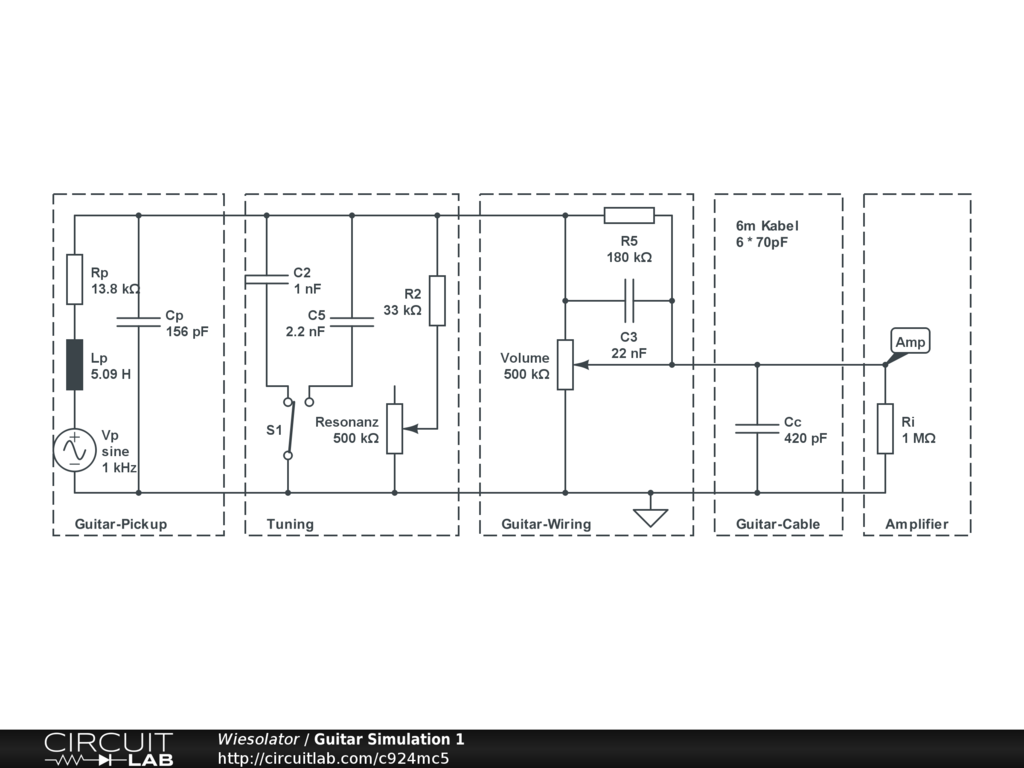

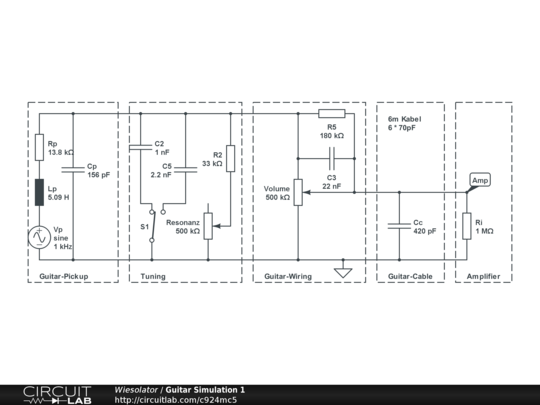

Gitarren-Simulation eines Gitarren-Wirings zur Bestimmung der Frequenzgänge bei Veränderung des Volume-Potentiometers.
Avatar for Wiesolator
by Wiesolator
September 09, 2013

@Wiestolator,

You may find this thread interesting too:

https://www.circuitlab.com/forums/audio-electronics/topic/7acy2sq2/how-to-simulate-an-electric-guitar-tone-control/

:)
Avatar for signality
by signality
September 11, 2013

I'ts not a full emulation, I've simulated a real Pickup with all Components, not a ideal Signal-Source. Thx
Avatar for Wiesolator
by Wiesolator
September 11, 2013
