DetectDifferenceInTension_24V_possible PUBLIC

Created by
Created July 26, 2022
Last modified July 26, 2022
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

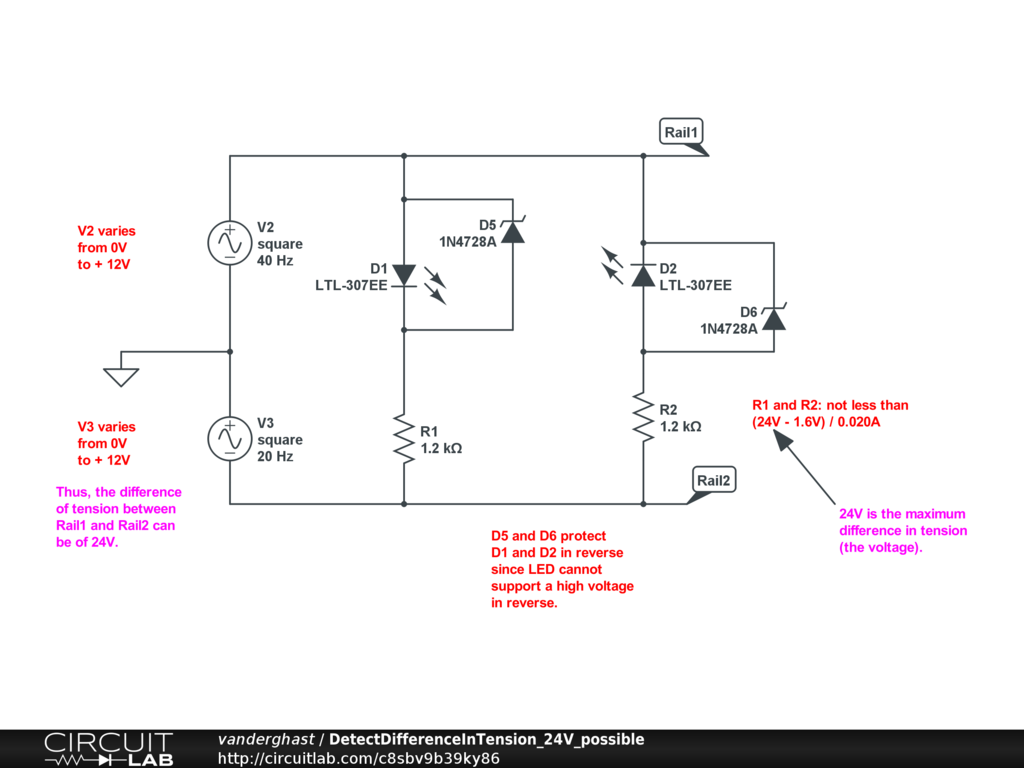

Detect a possible difference of tension of up to 24 volt through LED. Since LED cannot tolerate a large difference of voltage in reverse, I added Zener diode as protection to limite that possible reverse voltage to the LEDs. The original problem stated that each rail can be, independently, at +12V or at -12V
