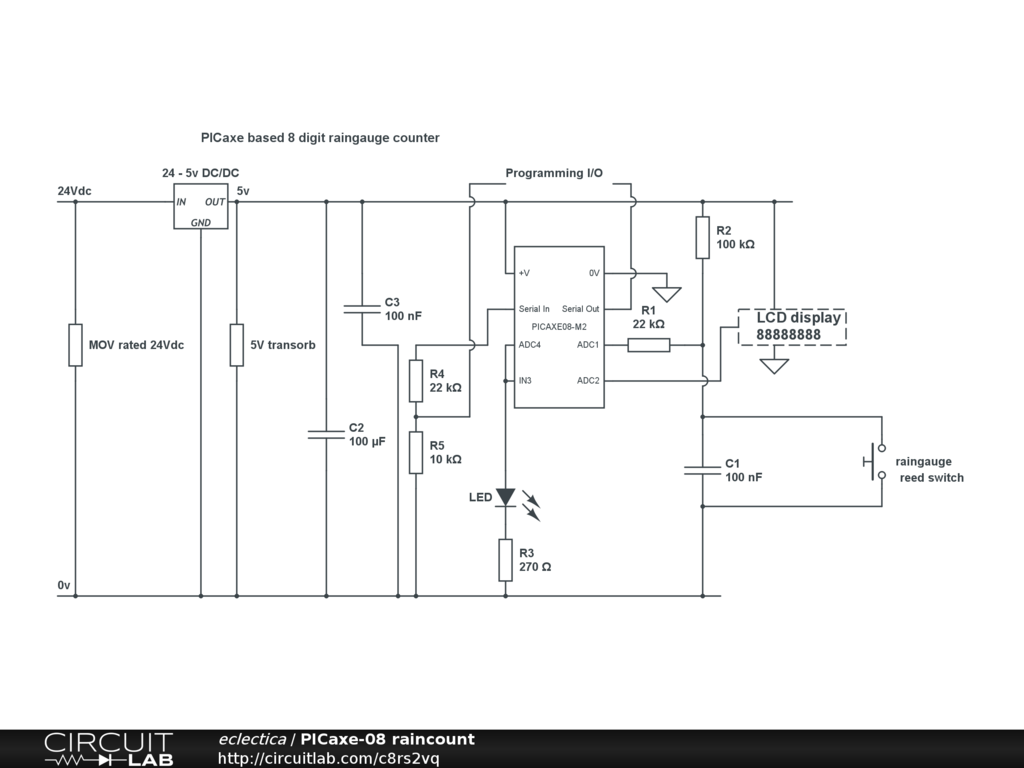

Simple momentary reed switch based raingauge interface counter circuit based on PICaxe-08M.

PICAXE08M

;PIC chip pin allocations

;pin 1 +V

;pin 2 serialIn

;pin 3 IN4/OUT4/ADC4 ;

;pin 4 IN3/ infrain ;

;pin 5 IN2/OUT2/ADC2/PWM2 ;serial LCD

;pin 6 IN1/OUT1/ADC1 ;reed switch from tipping bucket raingauge

;pin 7 OUT0/serialOut/infraOut ;LED

;pin 8 0v

;AUTHOR: M.R.CUTLER

;DATE: 09/05/2012

;PROGRAM DESCRIPTION:

; Counts show pulses on reed switch input from 1mm/pulse rain gauge.

; Writes values to EEPROM (power cycle preserved data). (I know the 100k EE write limit, but that is 100m rain - over 10 years worth!)

; Outputs count on LCD 20x2 serial display. Flashes LED when pulse received too.

; Max count 99999999

symbol LCD =2

symbol reed = 1

symbol led = 0

symbol rainpulseH = w0

symbol rainpulseL = w1

symbol zeros = w2

symbol EErainL = 0

symbol EErainH = 2

;pick up original count

read EErainL, WORD rainpulseL

read EErainH, WORD rainpulseH

gosub LCD_clr

serout LCD,N2400,("Precipitation gauge:")

gosub dispLCD

do

setfreq m8

do

loop until pin1=0

setfreq m4

high LED

pause 200 'just to be sure of no false bounce triggers

;wait for fall back (theoretically not at all necessary, but useful in

; preventing reading being lost in the event of cable dead-short situation)

do

loop until pin1=1

inc rainpulseL

if rainpulseL>9999 then

inc rainpulseH

rainpulseL = 0

if rainpulseH>9999 then

  rainpulseH = 0

endif

write EErainH, WORD rainpulseH

endif

write EErainL, WORD rainpulseL

gosub dispLCD

low LED

loop

LCD_clr:

serout LCD,N2400,(254,1)

pause 30

return

dispLCD:

serout LCD,N2400, (254,192)'set to beginning of line2

' print leading zeros

zeros = rainpulseH / 1000

if zeros = 0 then

serout LCD,N2400,("0")

zeros = rainpulseH / 100

if zeros = 0 then

  serout LCD,N2400,("0")

  zeros = rainpulseH / 10

  if zeros = 0 then

    serout LCD,N2400,("0")

  endif

endif

endif

serout LCD,N2400,(#rainpulseH)

'print leading zeros

zeros = rainpulseL / 1000

if zeros = 0 then

serout LCD,N2400,("0")

zeros = rainpulseL / 100

if zeros = 0 then

  serout LCD,N2400,("0")

  zeros = rainpulseL / 10

  if zeros = 0 then

    serout LCD,N2400,("0")

  endif

endif

endif

serout LCD,N2400,(#rainpulseL,"mm ")

return

'initial value for testing 09999998.

EEPROM 0,($0E,$27,$E7,$03)

;EOF
