simple audio amplifier for Dottie

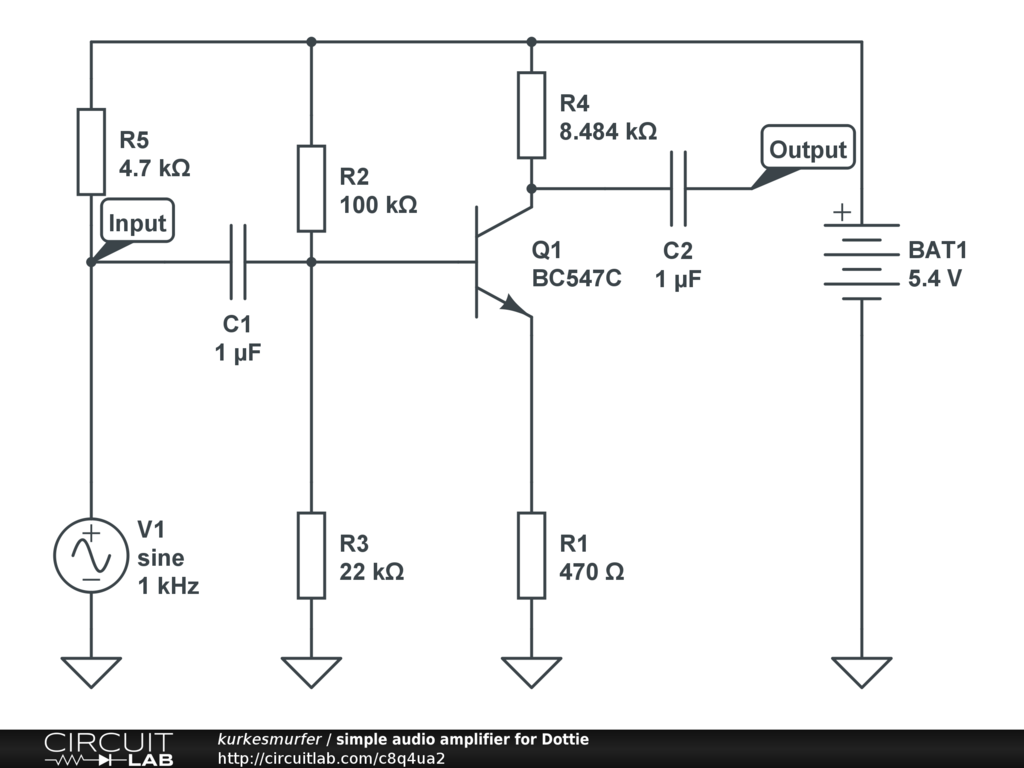

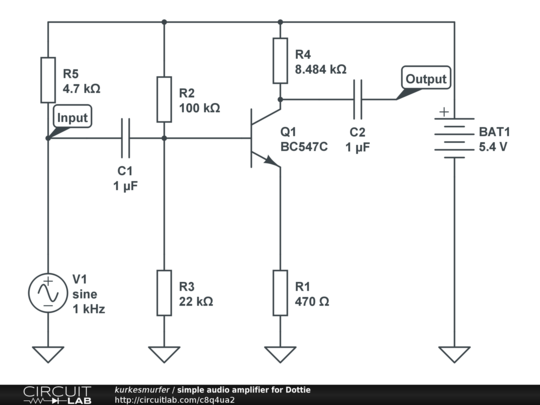

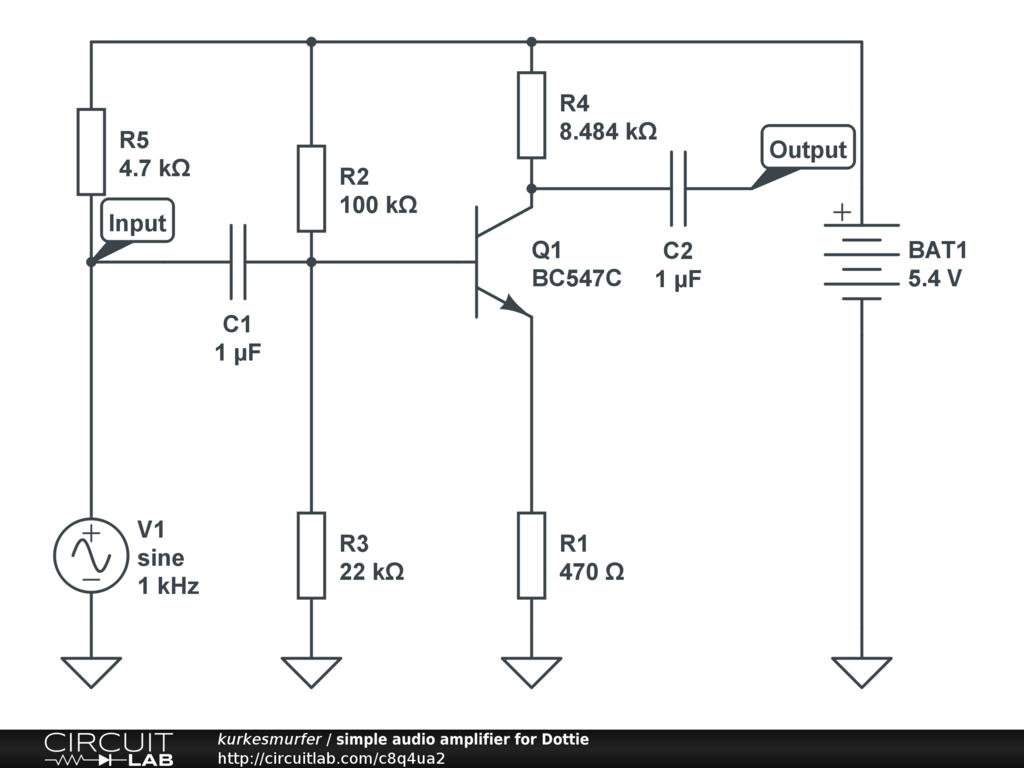

An electret microphone amplifier (based on example provided on this site) for Dottie to listen to the environment.
