Bubba Oscillator PUBLIC

Created by
Created September 04, 2012
Last modified September 06, 2012
Tags bubba   iutcachan   oscillator

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

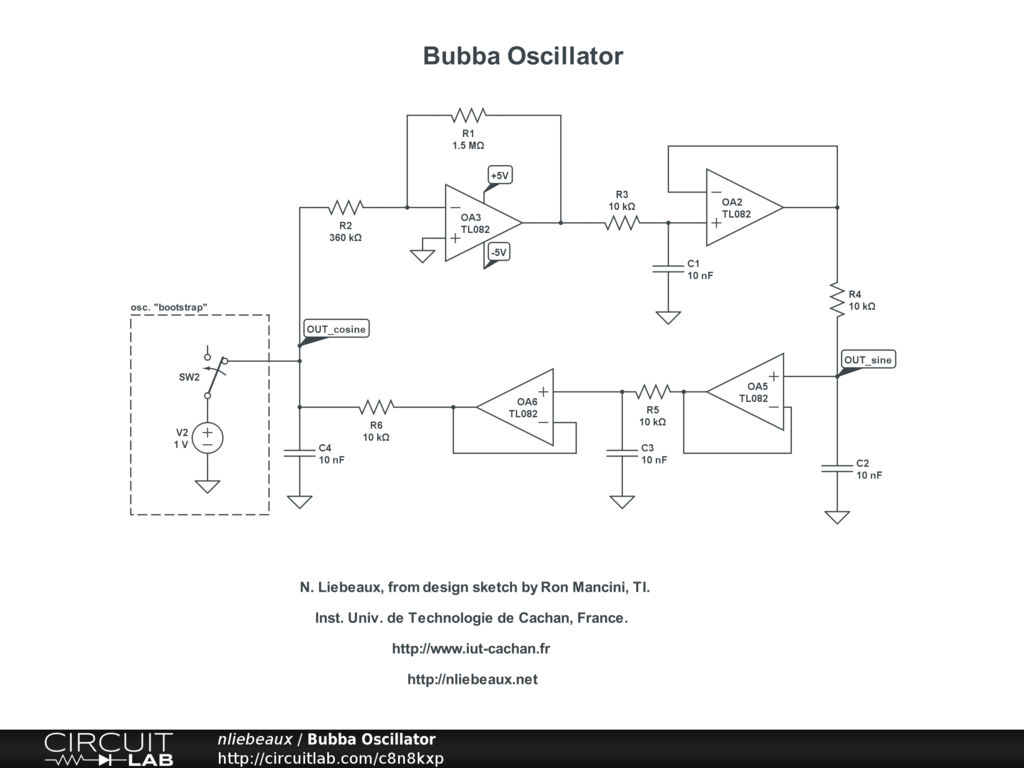

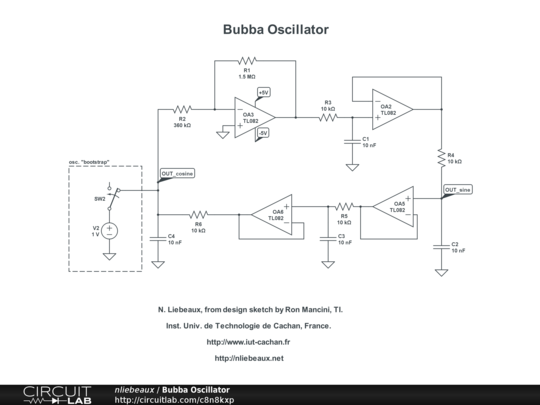

This Bubba Oscillator operates at a radial frequency of 1/(RC), with the inverter opamp gain greater than 4. The schematic is based on a design by R. Mancini, Texas Instr., and can be found in the App Report SLOA060, March 2001.

N. Liebeaux Inst. Universitaire de Technologie de Cachan, France.

www.iut-cachan.fr

www.nliebeaux.net
