LED 3x3x3 Cube PUBLIC

Created by
Created December 31, 2012
Last modified January 05, 2013
Tags 3x3x3   arduino   cube   led   mosfet   npn

Summary

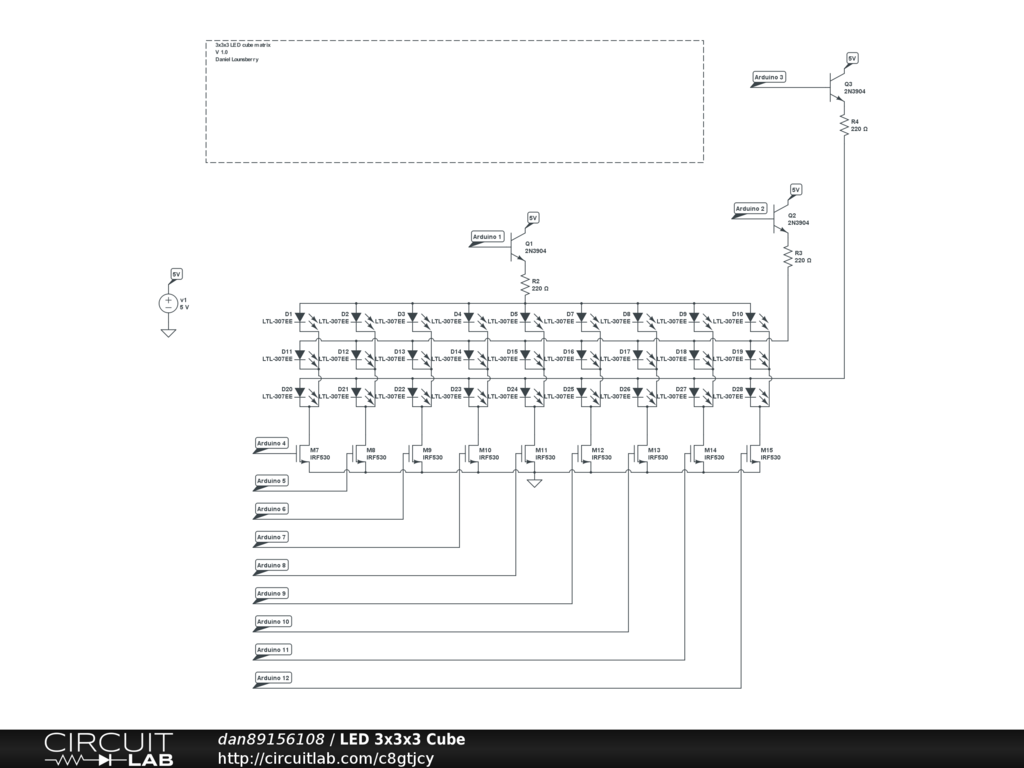

This is a LED 3x3x3 cube circuit. The LED's Cathodes are soldered together in 3 rows, and the anodes are soldered 3 high in 9 columns. This particular cube will be connected to an arduino. 3 NPN Transistors control 5V to each row, and 9 MOSFETS control which columns sink to ground.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.
