SG2020 to Sound Card Interface

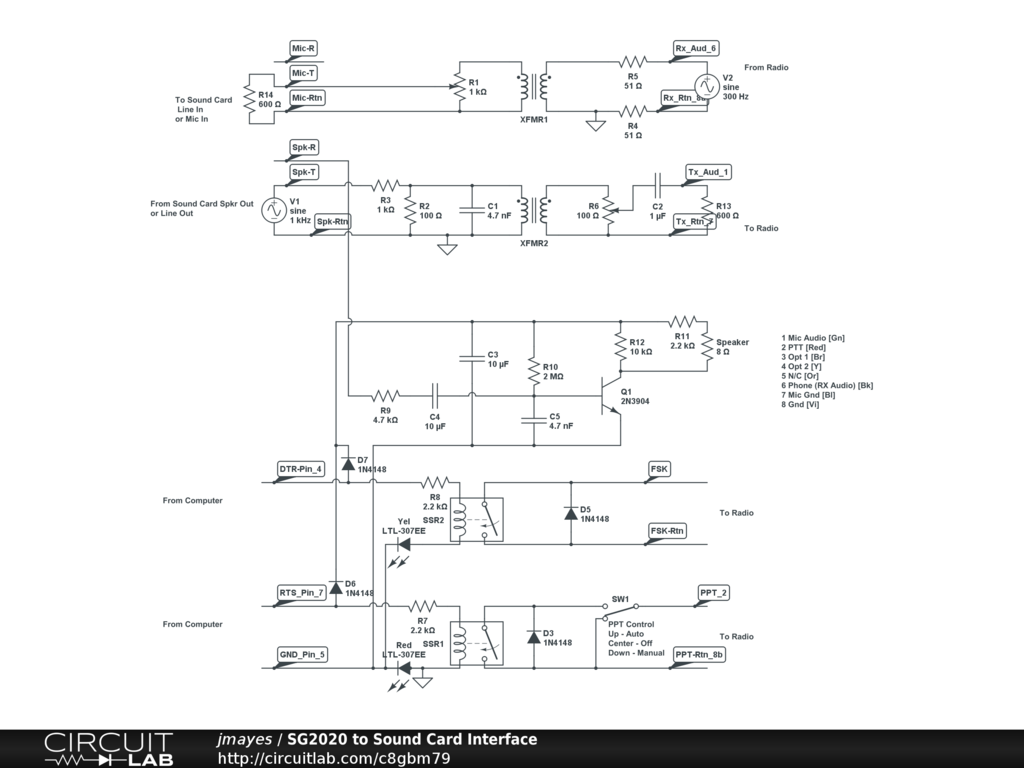

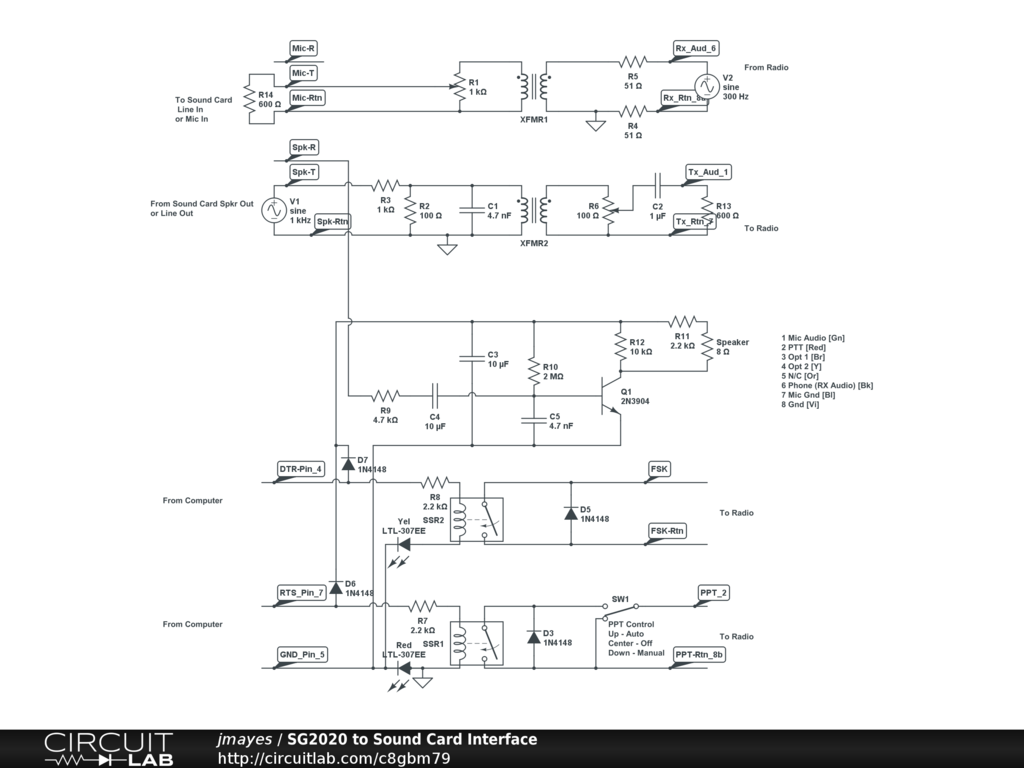

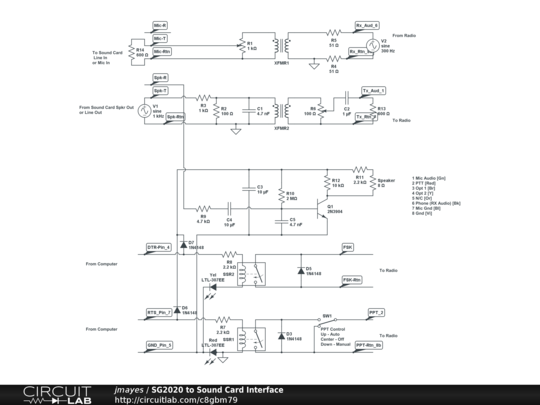

SG2020 PSK31 (really almost any digital) interface. Plagerized from Peter G3PLX Martinez' excellent document PSK31 Fundamentals
