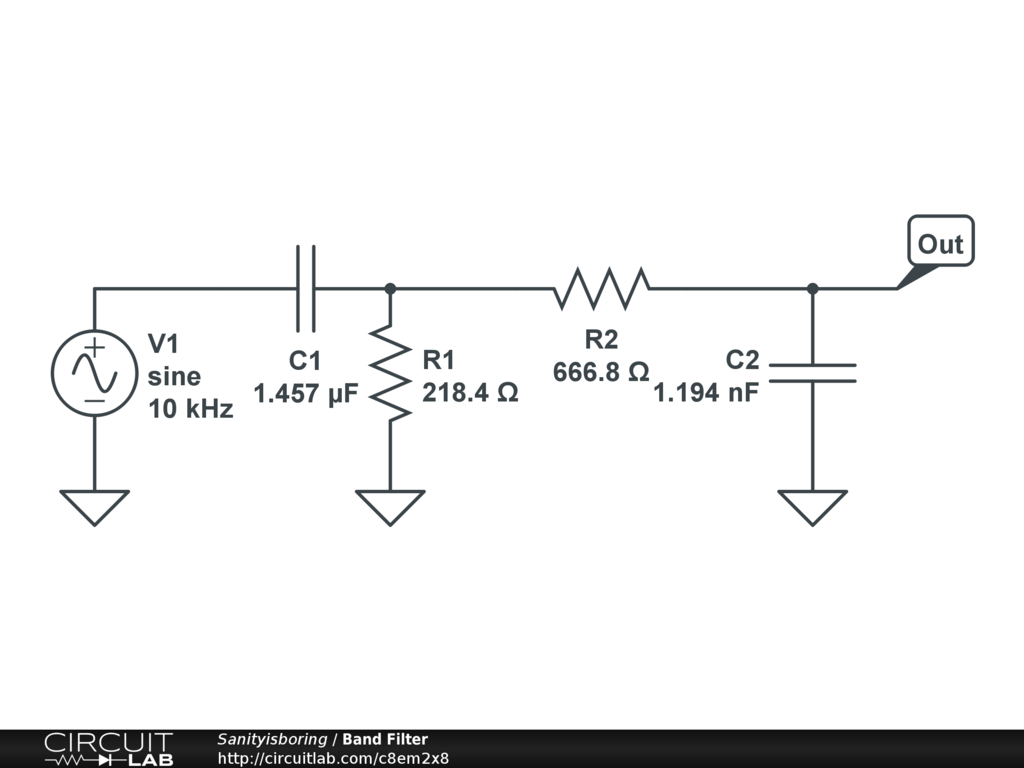

This is a constructed band pass filter out of two RC filter circuits, one high pass and one low pass, respectively.
This is a constructed band pass filter out of two RC filter circuits, one high pass and one low pass, respectively. The sum of the internal resistance by the resistors was required to be less than 10 kOhms, which is the reasoning behind the resistor and capacitor values. Also, the impedance of the high pass filter had to be 10 times less than the impedance of the low pass filter, following the rule of 10.
