Not provided.

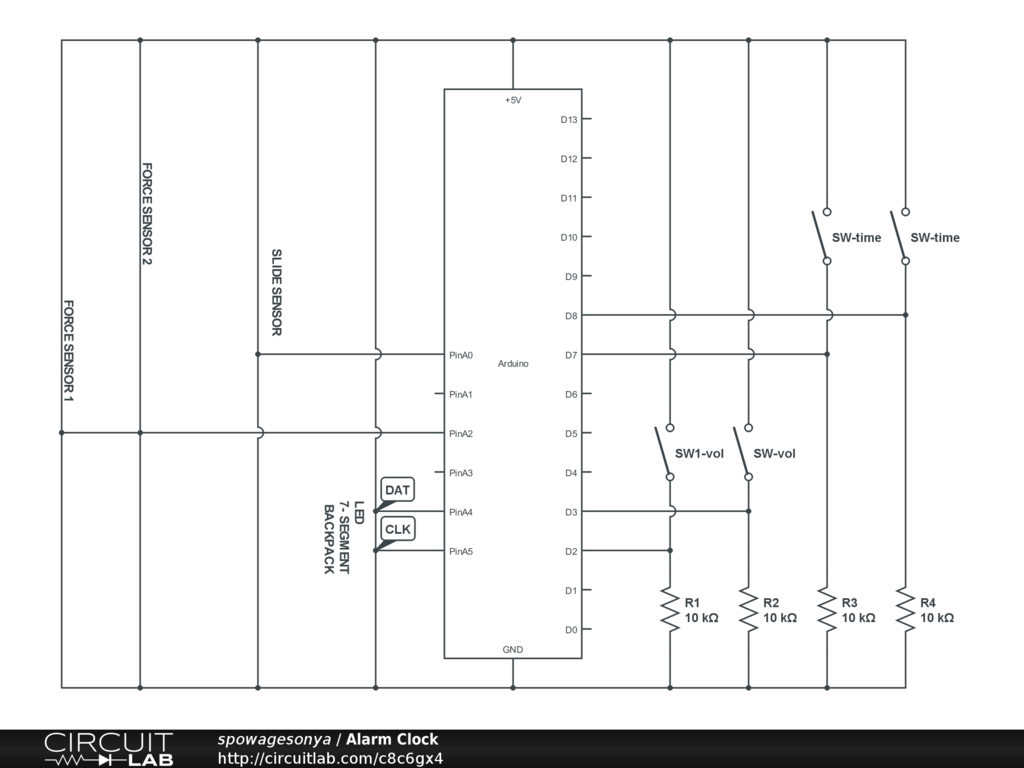

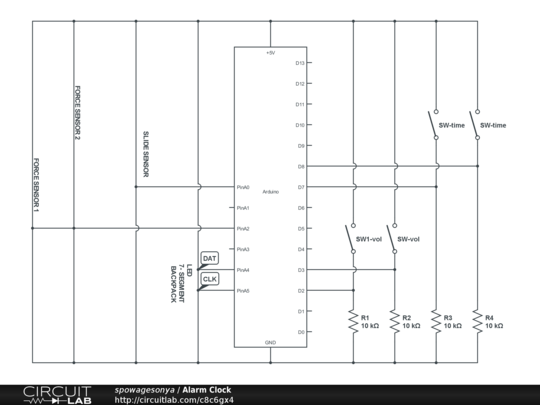

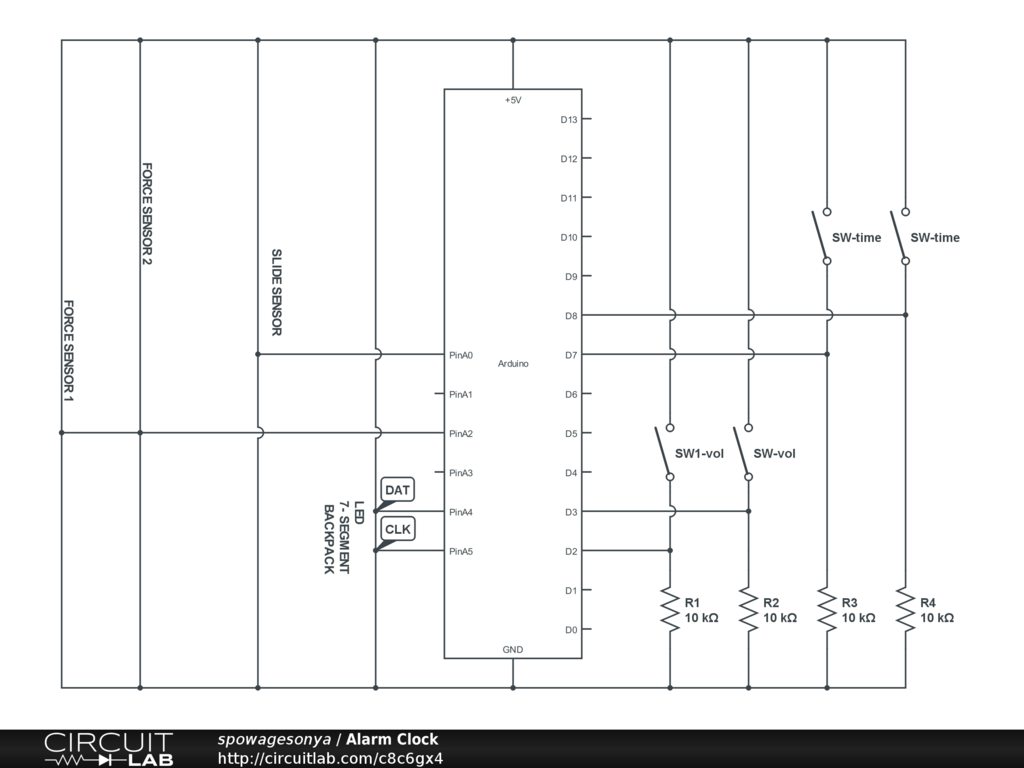

The 2 force sensors will be on the same analog pin (2) so when at least one is stepped on, the alarm should deactivate.
The one slide sensor is connected to analog pin 0 which can be read into the led display when it needs to be dimmed.
The LED segment display is connected to analog pin 4 and 5.
The 4 buttons (2 for volume, 2 for setting the alarm time) are connected to different digital pins so that their values can be read independently.
