Boost converter

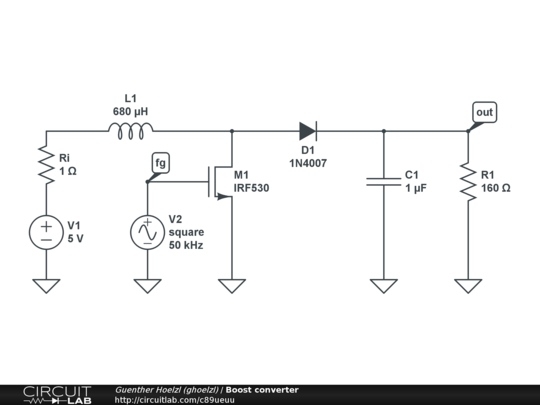

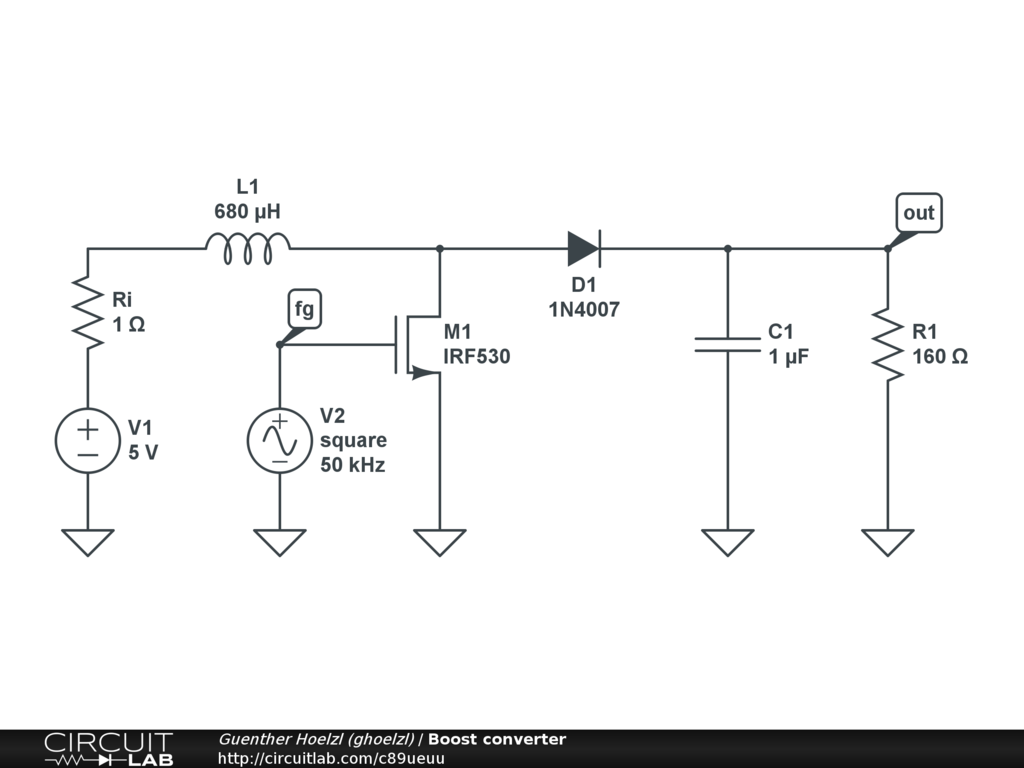

This is a small circuit for demonstrating the principle of a boost converter from 5V to 8V. See http://en.wikipedia.org/wiki/Boost_converter
