Main Amplifier Nikko TRM-750

Created by	KnutOllebolle
Created	January 04, 2022
Last modified	December 02, 2023
Tags	amplifier class-b current-control input-stage nikko output-stage soar-protection trm-750 vsa zobel

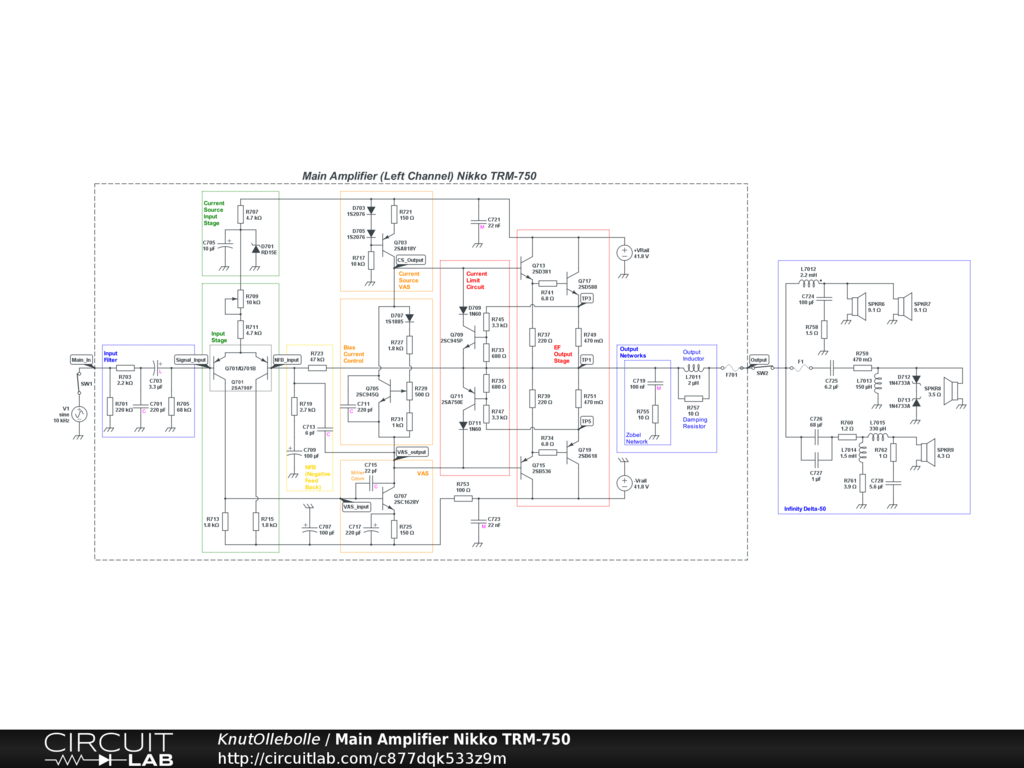

Diagram for left channel main amplifier Nikko TRM-750. Work in progress, not all semi-conductors have the proper values and/or symbol.
