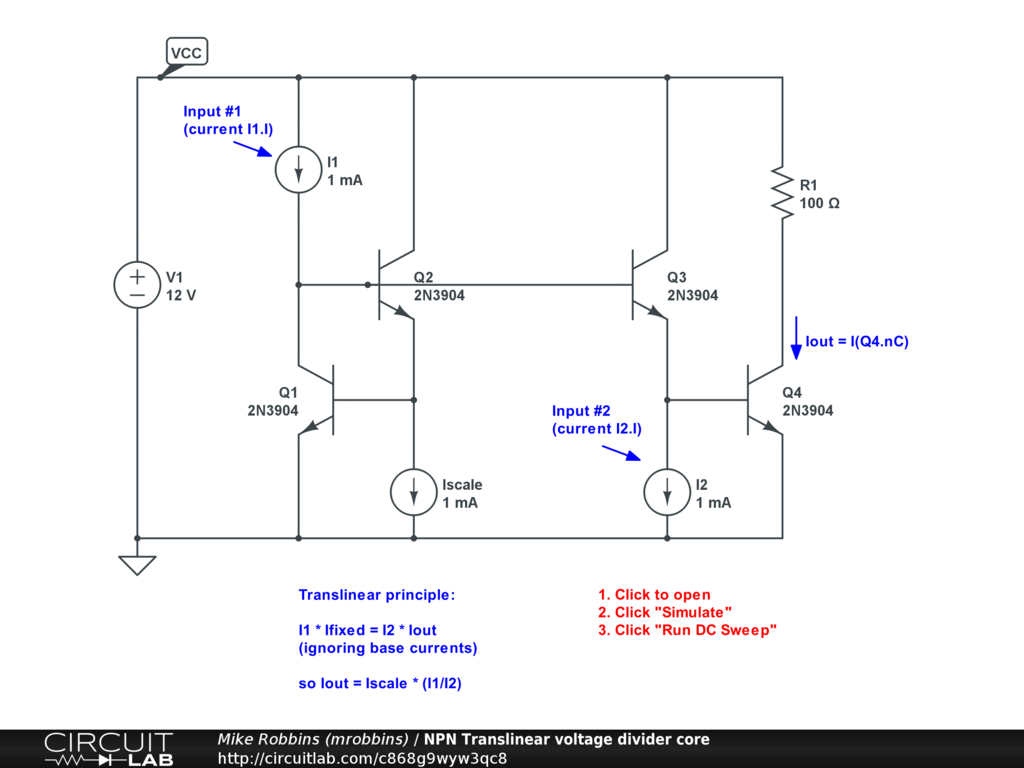

NPN Translinear voltage divider core PUBLIC

Created by
Created August 07, 2022
Last modified August 07, 2022
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

For https://electronics.stackexchange.com/a/630366/8398
