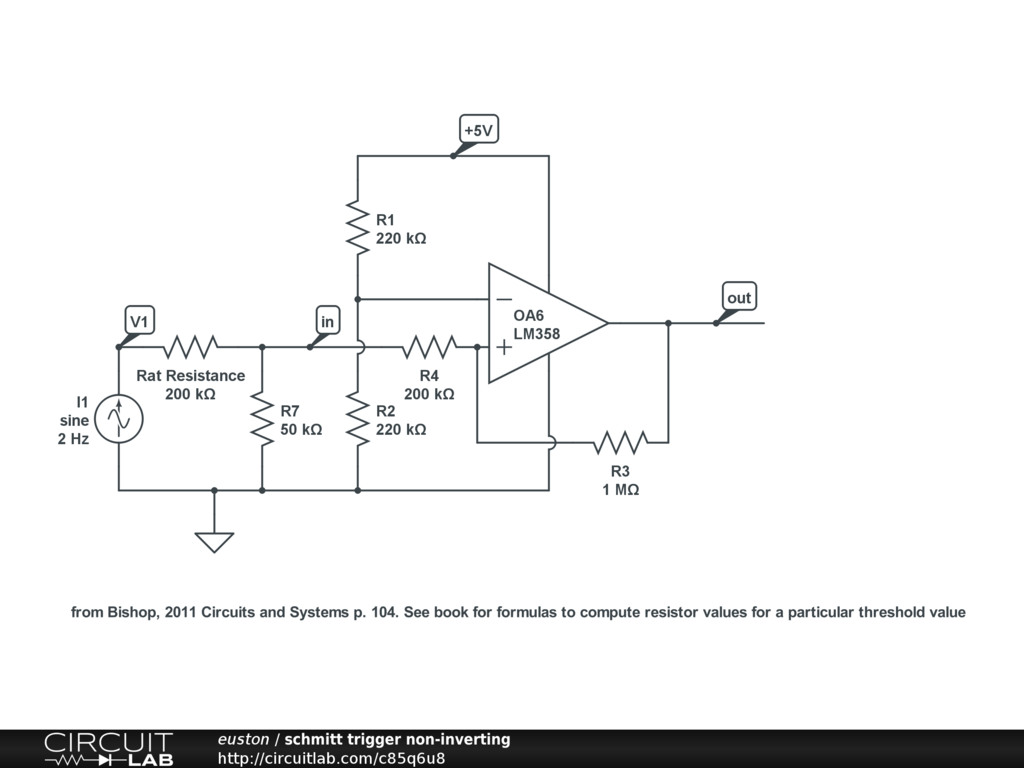

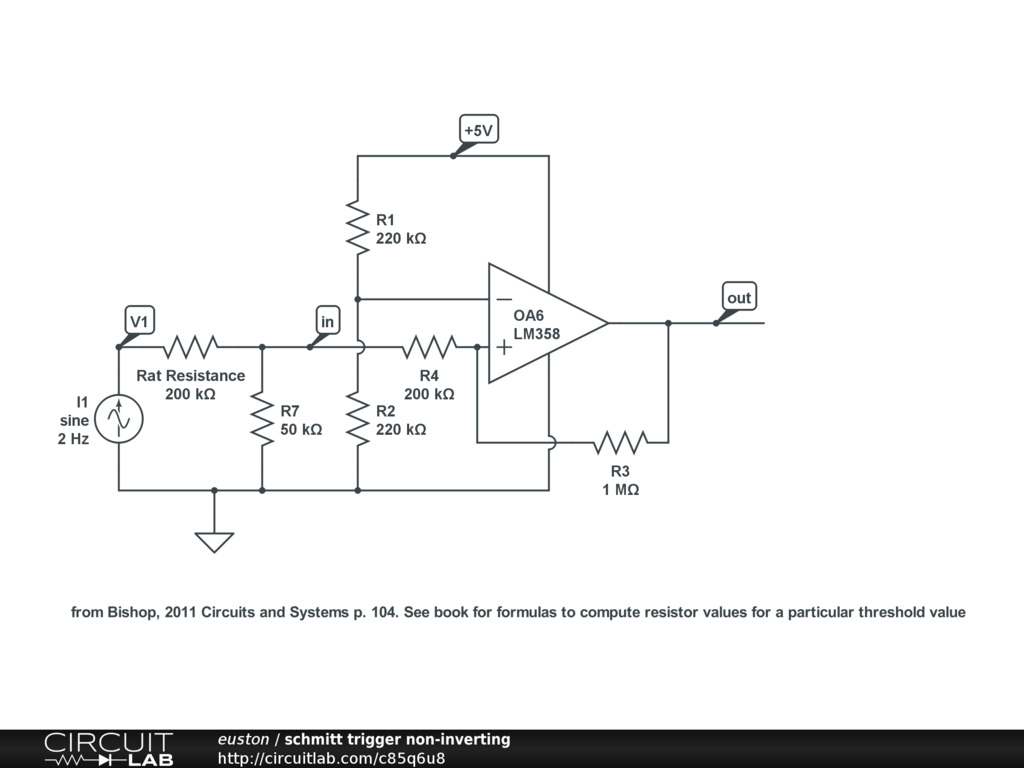

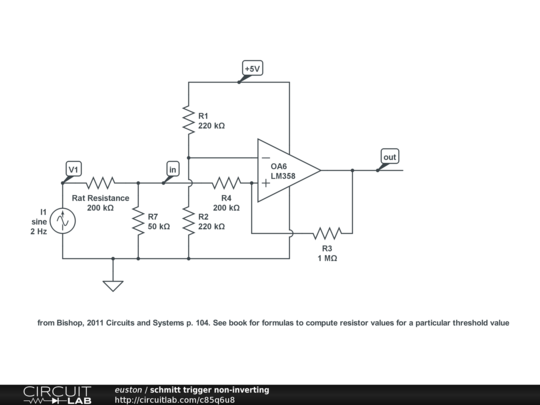

Schmitt trigger designed to detect when mild shock is delivered to a rat. The variable current source is the shock generator which will be replaced by a fixed current source in the final implementation. The variable current source helps characterize the behavior of the circuit for testing purposes.
Not provided.
