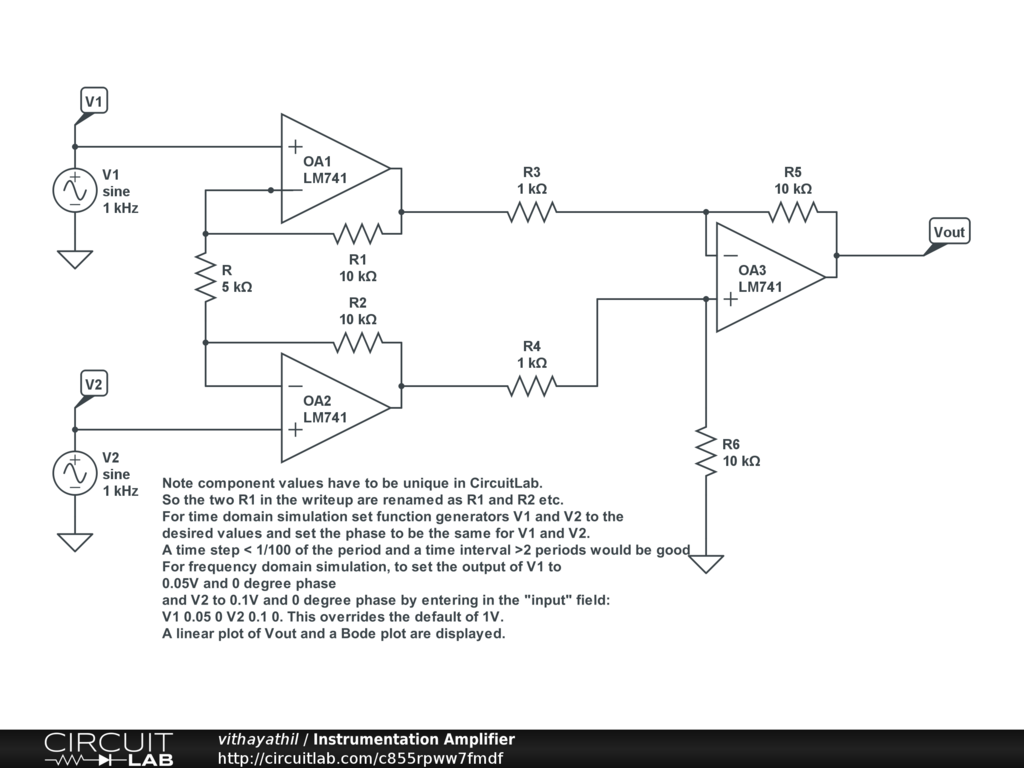

This simulation does both time domain and frequency domain simulation of the instrumentation amplifier described in lab 11. To rum frequency domain analysis enter in the frequency domain "input" field: V1 0.05 0 V2 0.1 0. This sets the input to V1 to 0.05V and V2 to 0.1V and phases are set to 0 degrees. This overrides the default of 1V.
