Description

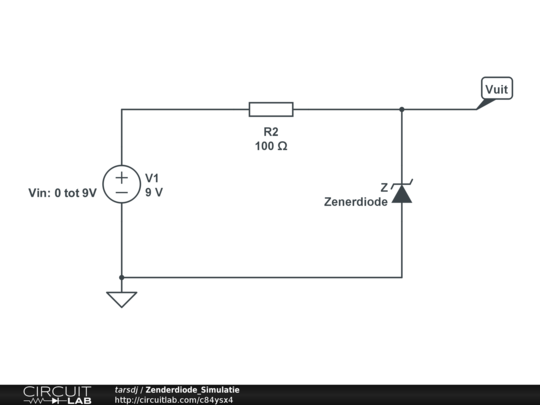

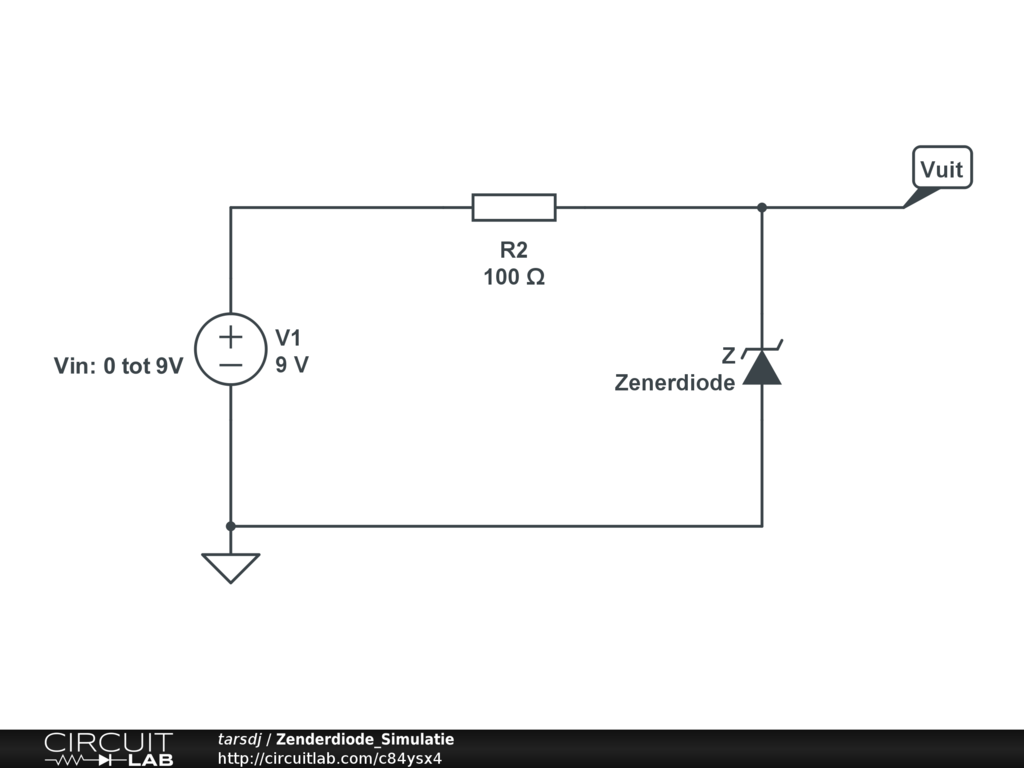

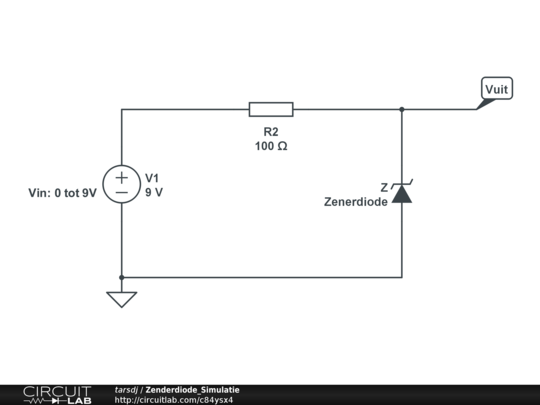

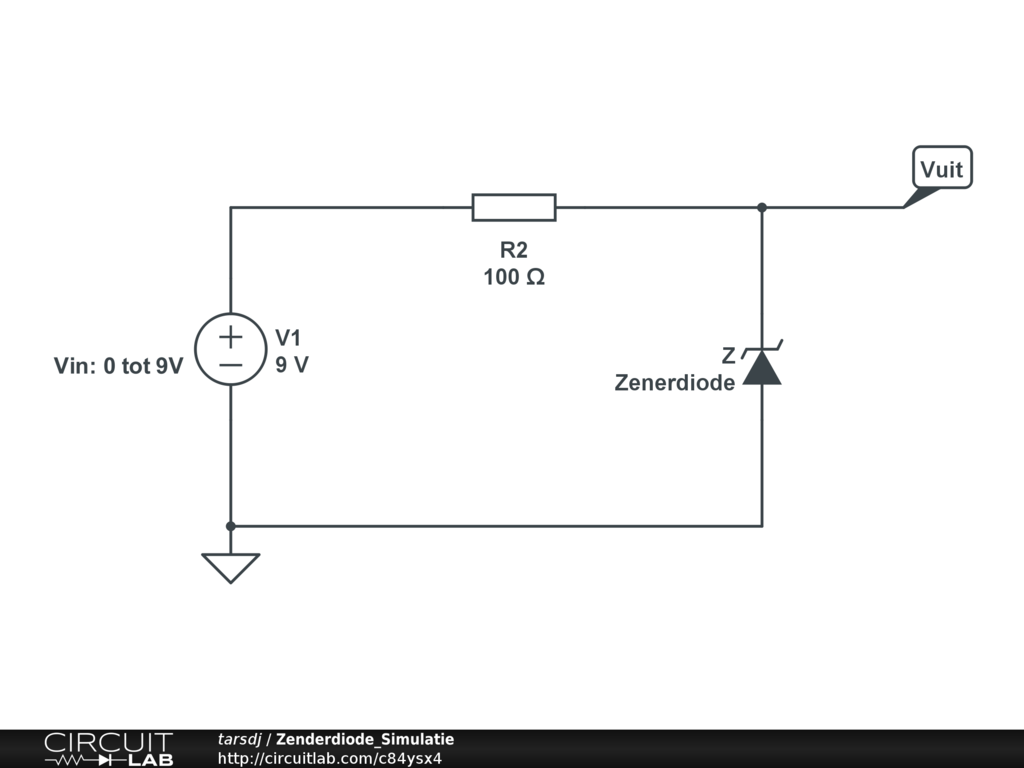

Dit is de simulatie van taak 4.11 uit de cursus 'Elektrische en elektronische bouwstenen' van Prof. Jo Verhaevert van de Universiteit Gent.

Merk op: in de cursus gebruikt men een potentiometer om de spanning te laten toenemen. Hier laat ik de bron lineair toenemen van 0 tot 9V. Dit komt op hetzelfde neer.
