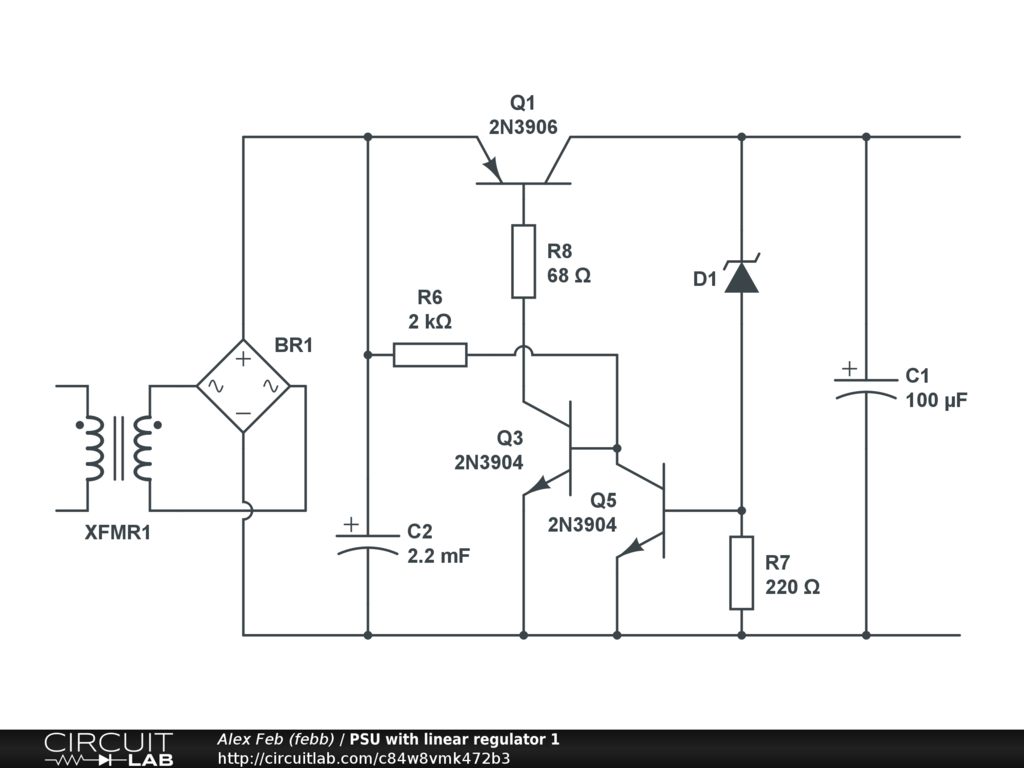

PSU with linear regulator 1

Simple power supply with linear regulator and lowest voltage drop

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Not provided.

Hello Alex, I'm a little uneasy about there being three inversions in the feedback loop. It might model okay but you are relying on C1 having low esr. I think I'd omit Q3 and make Q1 an emitter follower. Well nope,that's not at all like me, I'd be lazy and use a 78L05. :-) mike	by mikerogerswsm April 08, 2017
Hello, Mike, tank you for you comment. 7805 needs minimum 2V drop. It is too mach for me! :) I got only 7V after rectifier, and 7805 works very bad to make stable 5.2V out. So I wanted to squeeze maximum out of my poor transformer (and brain) and this schematic do this job well. :) 2n3904 is now less then 1 cent by the way.:)	by febb April 08, 2017
Okay, knew you'd have a good reason. 2N3904 is 16p here, please send quantity 10,000,000. I could make a good profit! :-)	by mikerogerswsm April 09, 2017
Sounds like smart business proposal :) I bought 100 on Ali Express for less then a 1$. :)	by febb April 09, 2017
