Not provided.

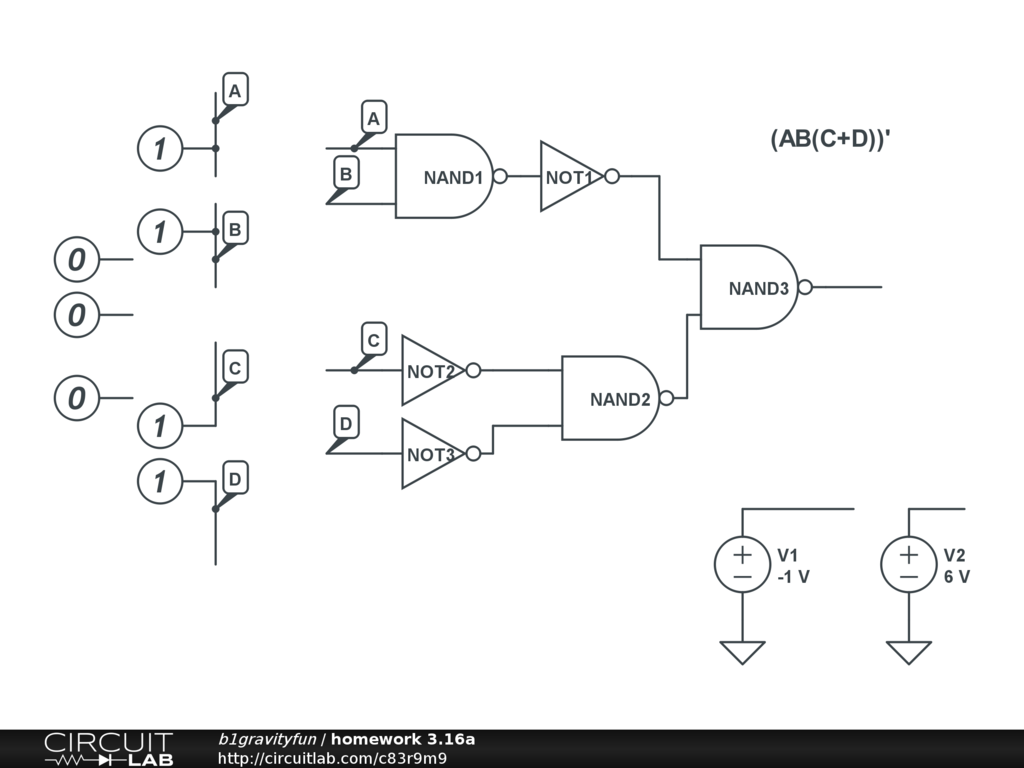

This is a basic circuit designed to test a basic boolean expression. To get an output, drag a 0 or 1 to each node: A, B, C and D. Run the simulation - the time domain thing. I also added two test outputs to scale out the graph and make it easier to read. The controlled out puts should graph at -1V and 6V. The experimental output should be 0 (low) or 5 (high)
