Tags reference   ripple

Summary

Very simple illustration of using a Zener diode to remove power supply ripple.


Description

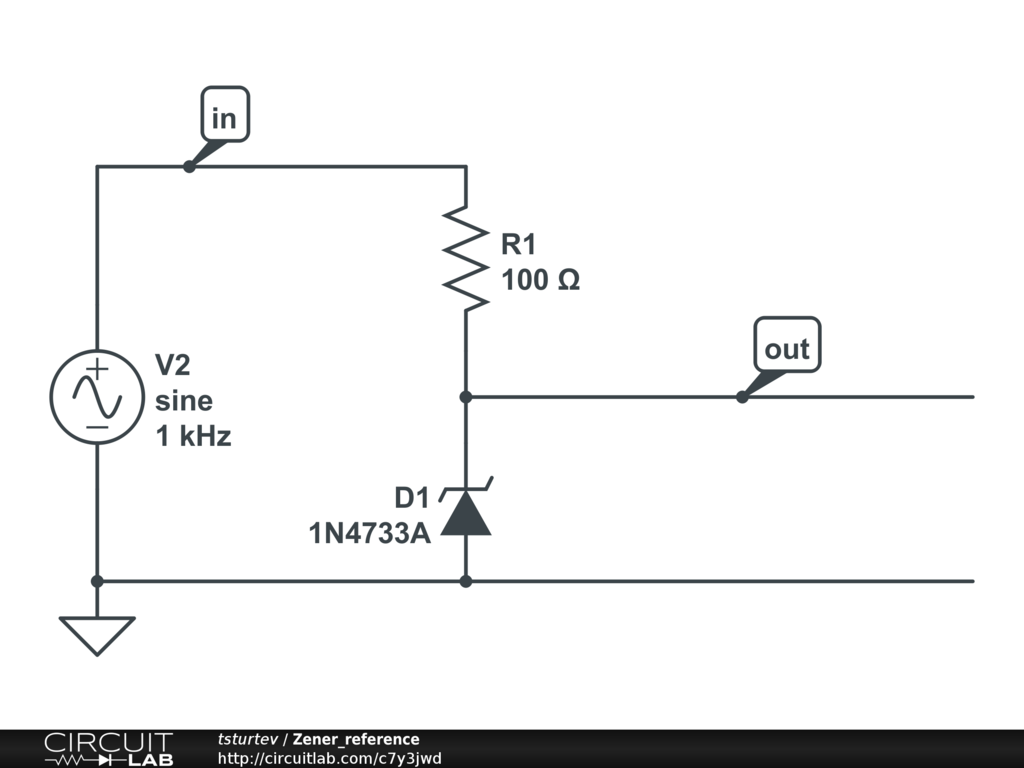

The signal generator with an offset is similar to a power supply with ac ripple. The Zener removes much of the ripple. This circuit makes playing with parameters easy.
