4 poll 10hz low pass filter with summer

Created by	Breanna Anderson (glyphstone)
Created	August 22, 2012
Last modified	August 22, 2012
Tags	4-poll low-pass sallen-key split-supply summer

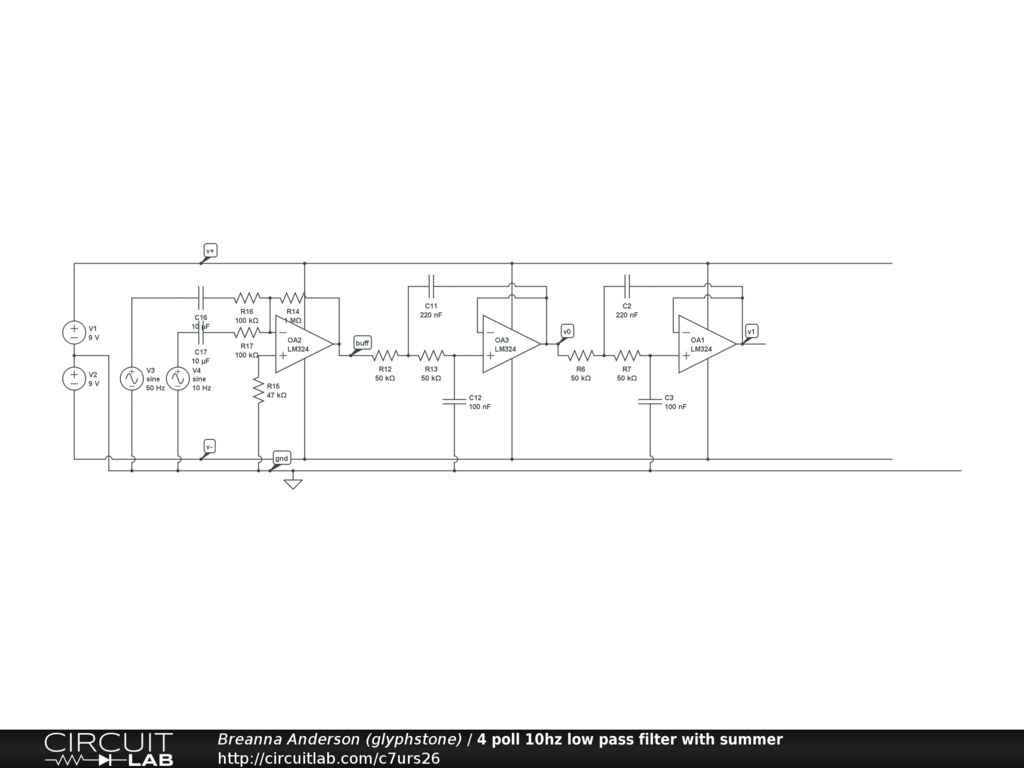

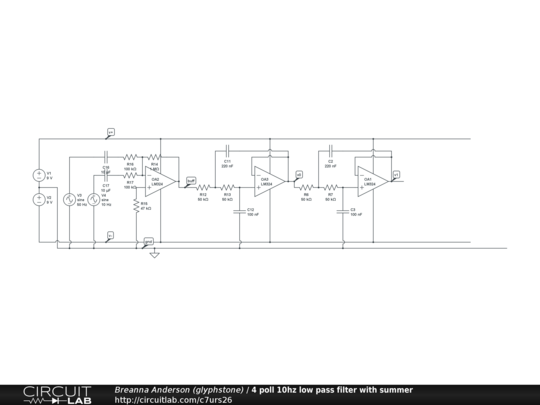

basic 4-poll salen-ley 10hz low-pass filter with a summing gain stage up front. This is the front end for a solenoid driver power end not included.
