Crossover distortion PUBLIC

Created by
Created April 17, 2013
Last modified April 24, 2013
Tags No tags.

Summary

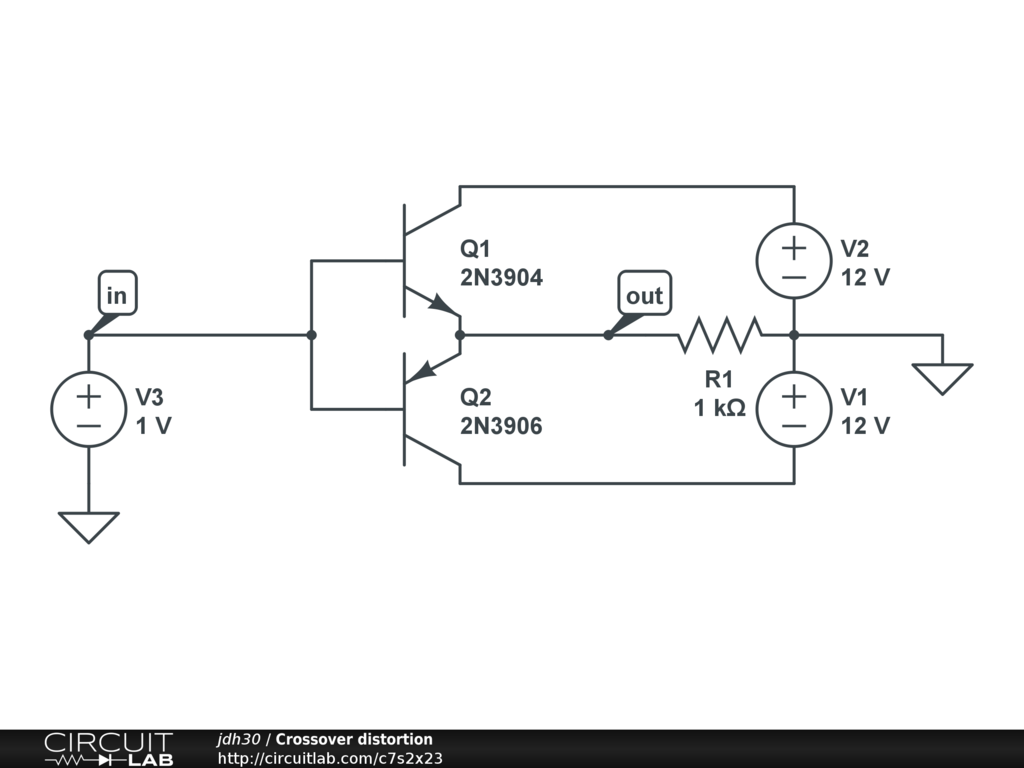

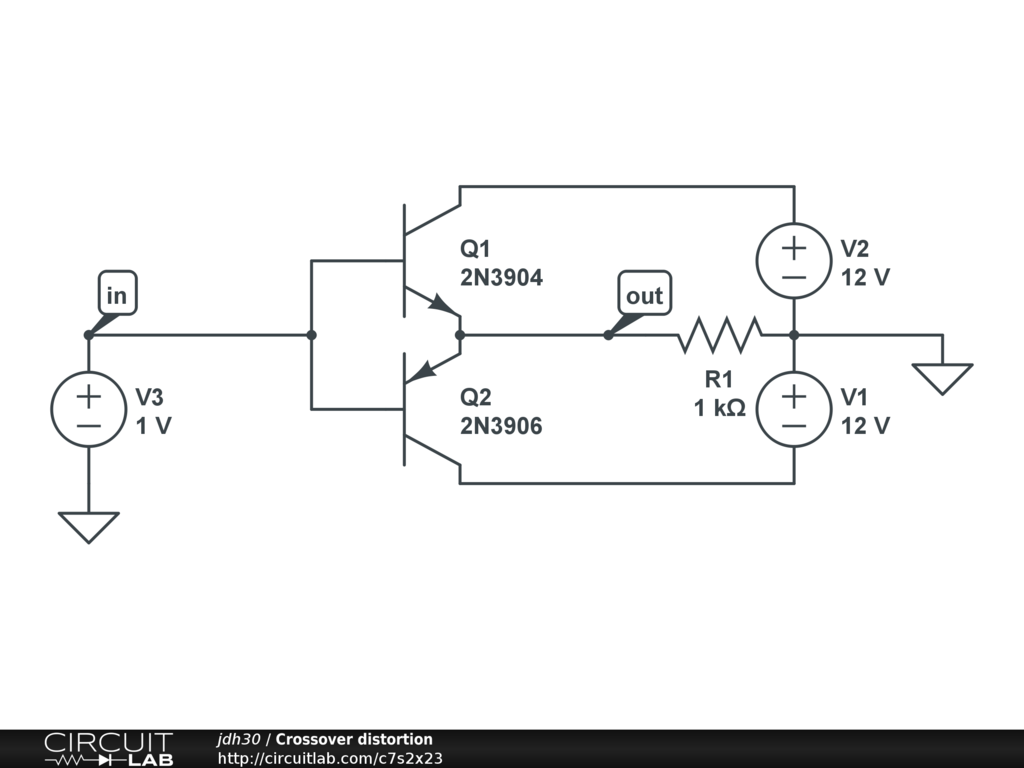

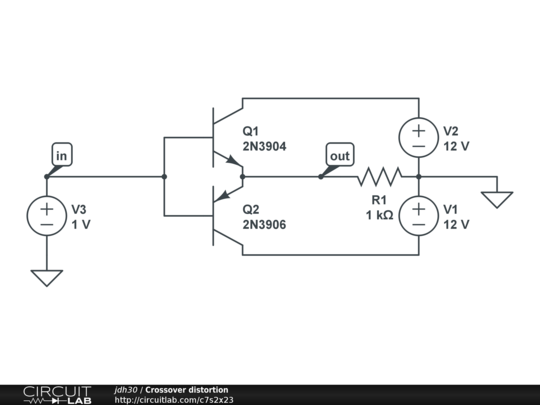

The ~0.6V turn-on gate voltage of a BJT introduces significant distortion when BJTs are used directly in a push-pull amplifier.
