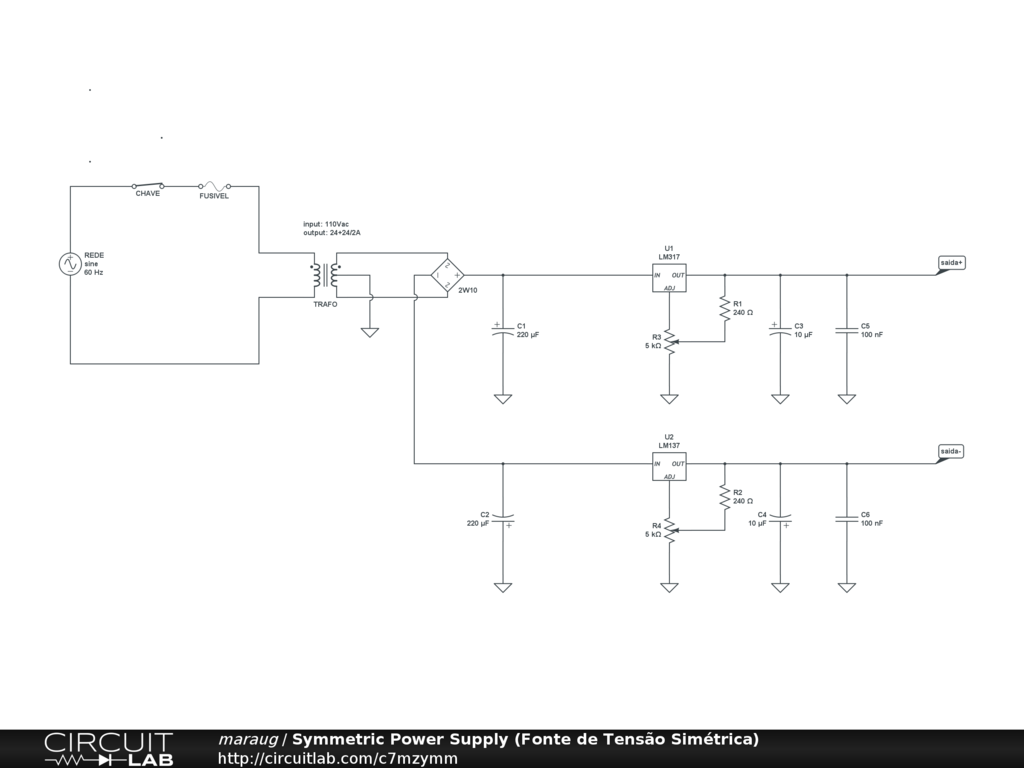

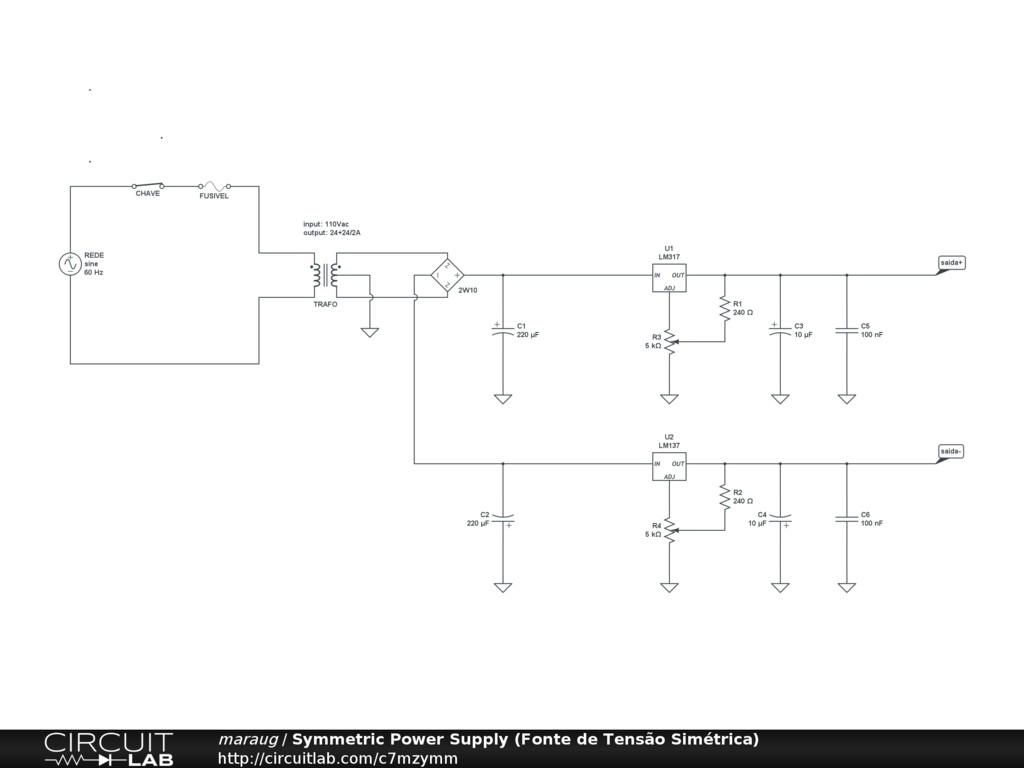

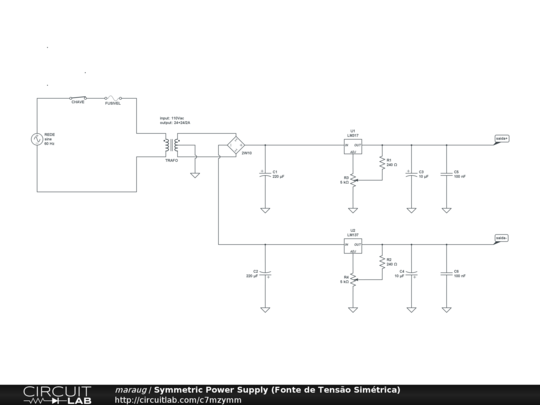

Symmetric power supply with adjustable outputs

positive output: +1,5v....+25v (1A max); negative output: -1,5...-25v (1A max);

input: 127Vac (fuse 500mA/250V);

Fonte de tensão simétrica com saídas ajustáveis.

saida positiva: +1,5v....+25v (1A max); saida negativa: -1,5...-25v (1A max);

entrada: 127Vac (fusível 500mA/250V);
