Not provided.

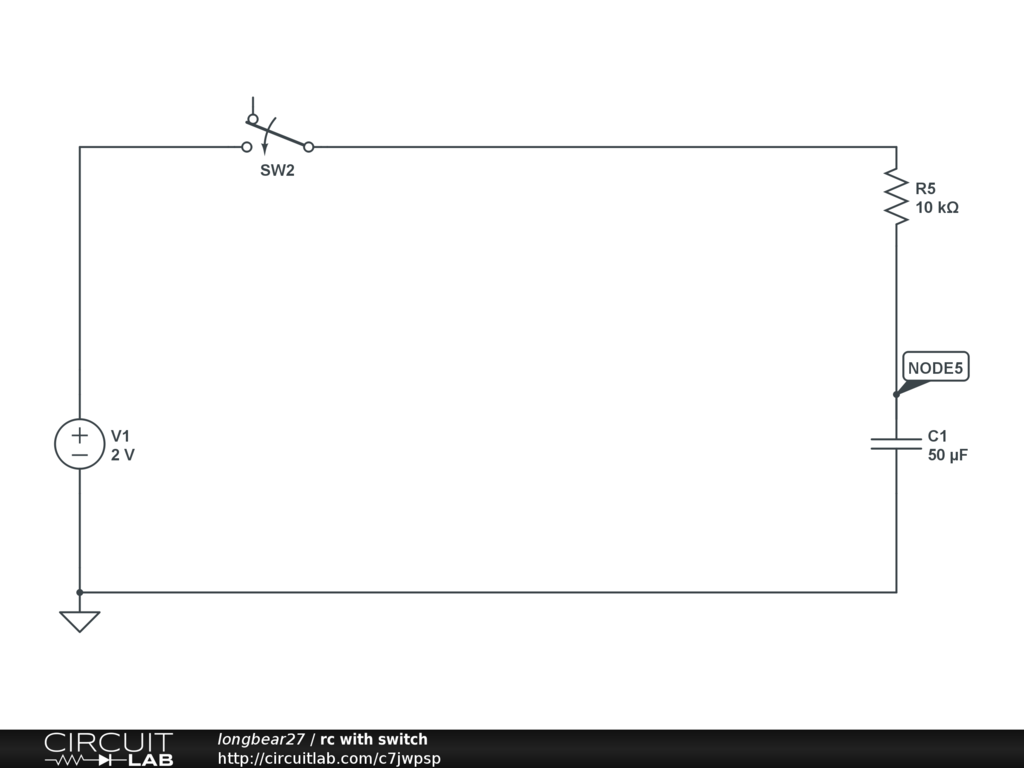

This is a simple RC (resistance Capacitor) circuit to demonstrate the exponential curve of the voltage on Node5 as the capacitor charges. The time constant (time in seconds to the capacitor having 63.2% of the charge in volts) is 05 seconds. This is given by T = R * C.
To show the exponential charging curve, a time controlled switch is needed. Without this switch - e.g. with just a voltage source - one gets a graph with a constant voltage of 2 volts.
