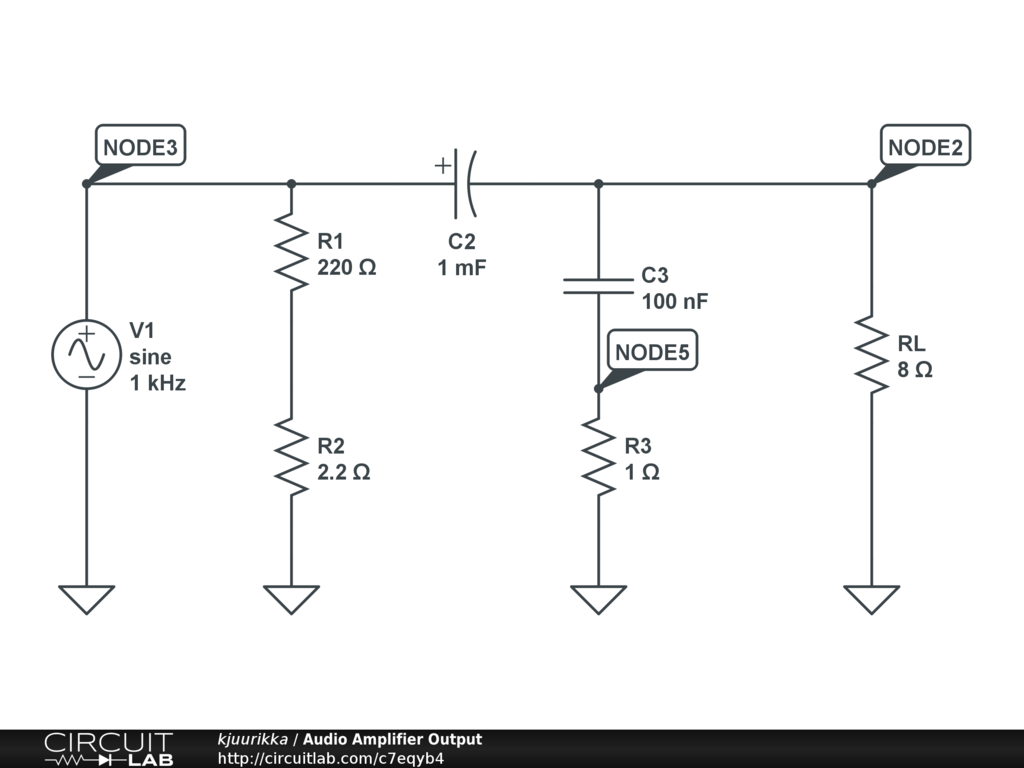

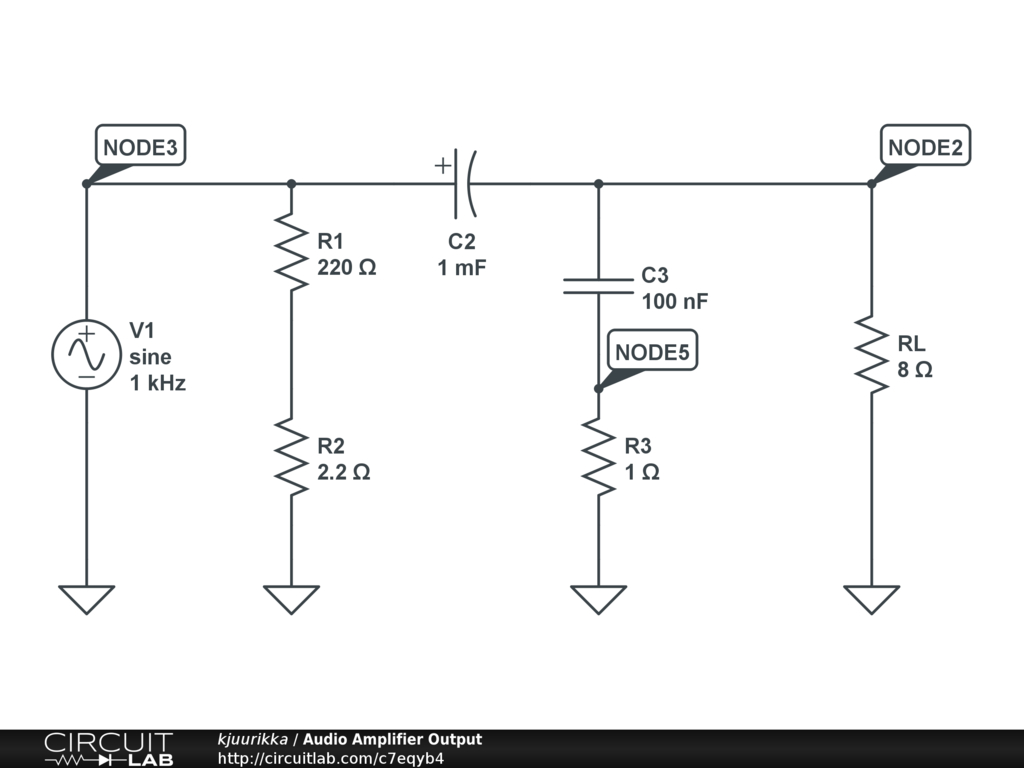

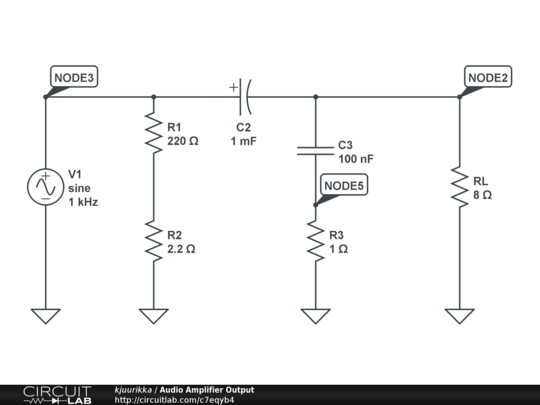

This output circuit is for TDA2003 audio amplifier. Circuit is from datasheet. -3dB points are 21.28 Hz and 1.585 MHz?
